SPST Standary Right angle type dip switch 1~12pins

  • Model: KLS7-DAT
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

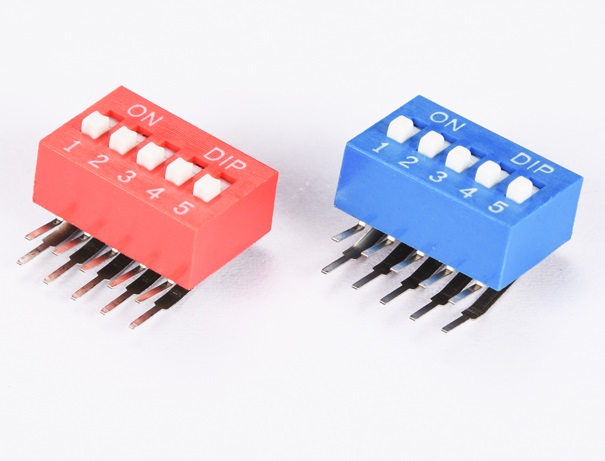

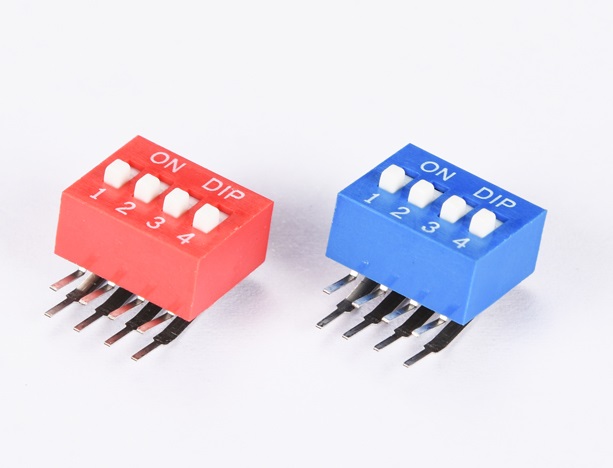

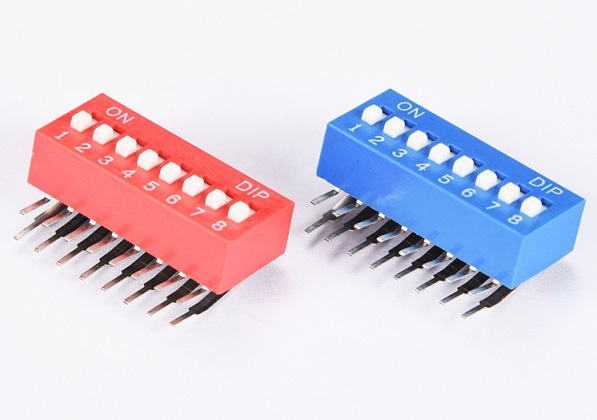

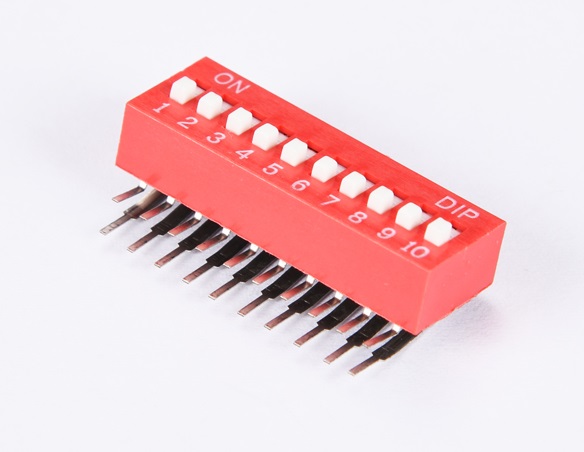

SPST Standary Right angle type dip switch 1~12pins
Material:
Cover: PBT plastic (red or blue)
Base: PBT plastic (black)
Operator: POM plastic (white)
Stock: epoxy resin potting
Terminal: tin plated phosphor bronze, contact gold plated 3u”
Sealing tape: polyimide KAPTON

Switching Characteristics:
Switch Capacity: 25mA at 24VDC
Insulation Resistance:100MΩ at 250VDC
Contact Resistance: 50mΩ max.
Insulation strength: 500VAC / 1min
Operation Force : 1000gf max.
Electrical life: 2000 times
Operation Temp:-20ºC~+70ºC

Welding requirements:
Manual welding: 320 degrees C no more than 2 seconds. (30 watt iron max.)
Wave soldering: 260 degrees C no more than 5 seconds, in the welding and cleaning process switch is open state.
