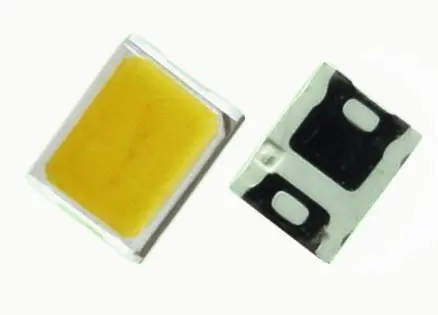

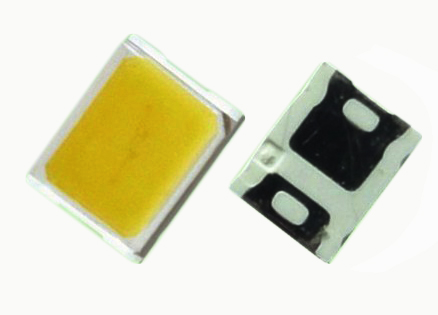

SMD TOP Lighting LED 0603
- Product Details
| Part.No. | Package | Size | Chip Emitted Color | Chip Peak wave Length |
Lens Appearance |
Absolute Max. Ratings | Electro-optical Data(at 20mA) | Viewing angle 2θ1/2 |
|||||
| Vf | Iv | ||||||||||||
| λp | Δλ | Pd | If | Peak | type | max | type | ||||||
| mm | nm | nm | mw | mA | mA | V | V | mcd | deg | ||||
| KLS9-T0603URC | 0603 | 1.6×0.8 | Ultra Bright Red | 624 | Water Clear | 20 | 70 | 30 | 70 | 2.2 | 2.6 | 120 | 120 |
| KLS9-T0603UEC | 0603 | 1.6×0.8 | Ultra Bright Orange | 605 | Water Clear | 20 | 70 | 30 | 70 | 2.2 | 2.6 | 115 | 120 |
| KLS9-T0603UBC | 0603 | 1.6×0.8 | Ultra Bright Blue | 468 | Water Clear | 20 | 90 | 30 | 100 | 3.2 | 3.4 | 150 | 120 |
| KLS9-T0603UGC | 0603 | 1.6×0.8 | Ultra Bright Green | 521 | Water Clear | 20 | 90 | 30 | 100 | 3.2 | 3.6 | 550 | 120 |
| KLS9-T0603UYC | 0603 | 1.6×0.8 | Ultra Bright Yellow | 592 | Water Clear | 20 | 70 | 30 | 70 | 2.2 | 2.6 | 115 | 120 |
| KLS9-T0603YGC | 0603 | 1.6×0.8 | Ultra Bright Yellow Green | 572 | Water Clear | 20 | 70 | 30 | 70 | 2.2 | 2.6 | 35 | 120 |
| KLS9-T0603CW | 0603 | 1.6×0.8 | Ultra Bright White | 0.29 | Yellow Diffuse | ~ | 90 | 30 | 100 | 3.2 | 3.6 | 600 | 120 |
| KLS9-T0603WW | 0603 | 1.6×0.8 | Ultra Bright Warm White | 0.42 | Yellow Diffuse | ~ | 90 | 30 | 100 | 3.2 | 3.6 | 400 | 120 |
