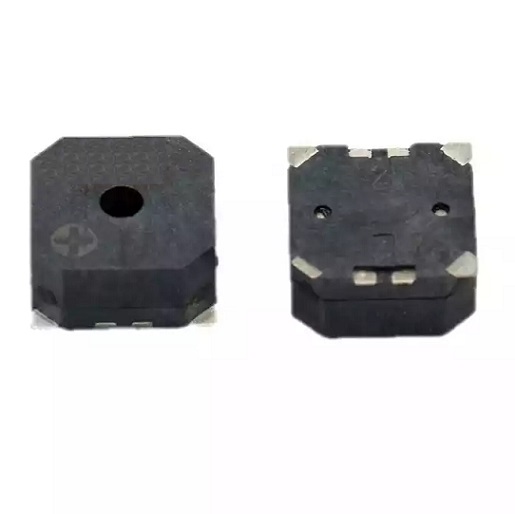

SMD magnetic buzzer,Externally driven type,Top sound

Oscillation Frequency: 2.7KHz
Rated Voltage: 3.6Vo-p
Operating Voltage: 2.5~4.5Vo-p
Rated Current: 100mA Max.at Rated Voltage
Sound Pressure Level: 85dB Min.at 10 cm at Rated Voltage
Coil Resistance: 16±3Ω
Operating Temp: -40~+105°C
Weight: 0.8g

Housing Material: LCP

Size:

KLS3-SMT-8.5x04F.pdf
