Slide Switch

  • Model: KLS7-SS01-12E03A / KLS7-SS01-12E03B
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

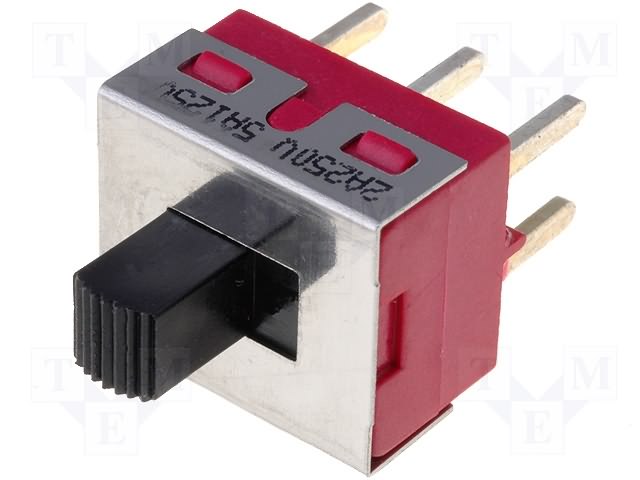

Slide Switch
KLS7-SS01-12E03A NO-ON
KLS7-SS01-12E03B NO-OFF-ON

SPECIFICATIONS
Rating: 2A 250 VAC; 5A 125 VAC Or 28VDC
Contact Resistance: 10MΩ max
Insulation Resistance:1000MΩ Min
Dielectric Strength:1500V RMS @ sea level
Operation temperature: -30 ºC to 85 ºC
Electrical Life :30,000 cycles actuations at full load
