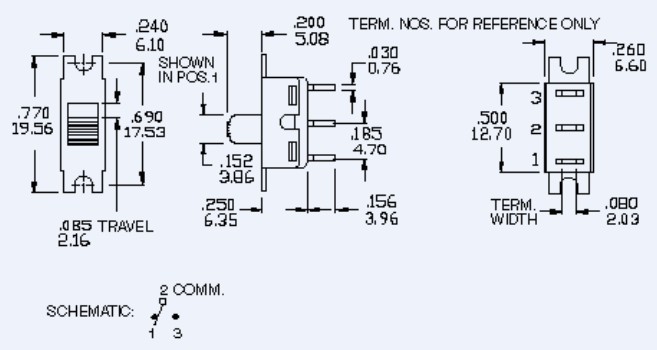

Slide Switch
KLS7-SS01-12E01A NO-ON
KLS7-SS01-12E01B NO-OFF-ON

SPECIFICATIONS
Rating: 3A 250 VAC; 5A 125 VAC Or 28VDC
Contact Resistance: 10MΩ max
Insulation Resistance:1000MΩ Min
Dielectric Strength:1500V RMS @ sea level
Operation temperature: -30 ºC to 85 ºC
Electrical Life :30,000 cycles actuations at full load
