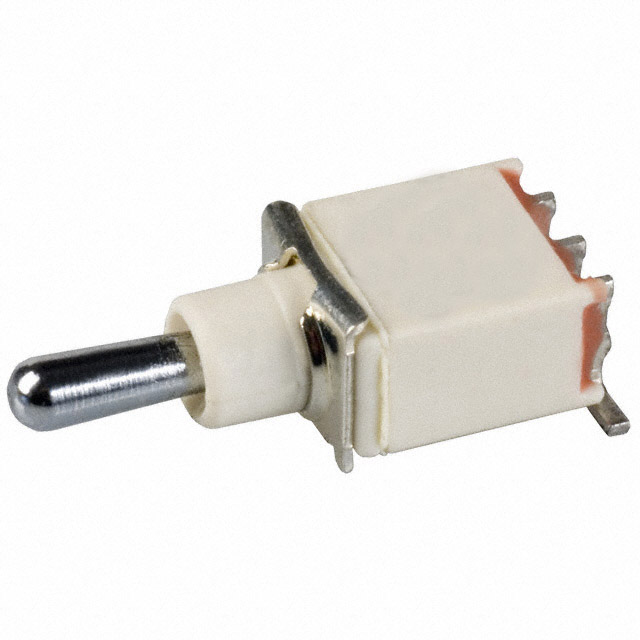

Sealed SMT Sub-miniature Toggle switch

  • Model: KLS7-2BS1T2A1MTRE / KLS7-2BS1TBA1MZRE
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Sealed SMT Sub-miniature Toggle switch (IP67)

SPECIFICATIONS
Rating: 3A 120VAC Or 28VDC; 1A 250VAC;0.4VA 20V AC or DC
CONTACT RATING: Dependent on Contact Material
MECHANICAL LIFE: 30,000 Make-and-Break Cycles
CONTACT RESISTANCE: 20mΩ Max. Initial for Both Silver and Gold Plated Contacts
INSULATION RESISTANCE: 1,000MΩ Min.
DIELECTRIC STRENGTH: 1,000V RMS at Sea Level
OPERATING TEMPERATURE: -30°C to 85°C

MATERIALS
CONTACTS/TERMINALS: Gold Plate Over Nickel Plated Copper Alloy
TERMINAL SEAL: Epoxy
