SATA 7+15P Female Connector,SMD,H6.70mm

  • Model: KLS1-SATA414
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

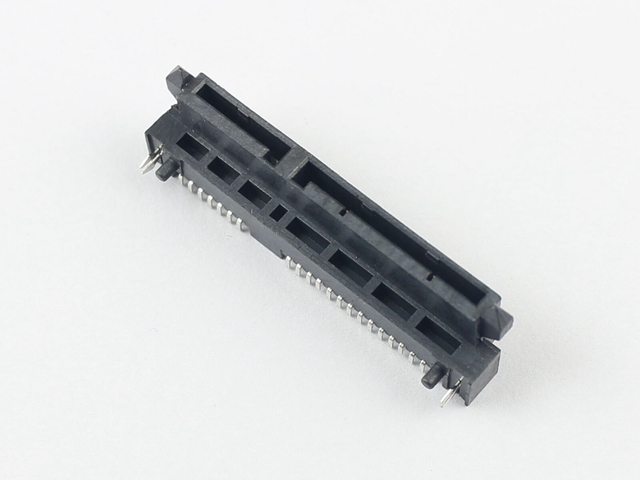

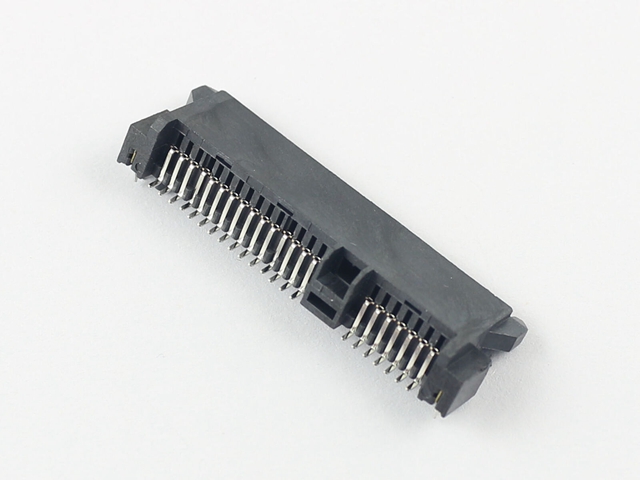

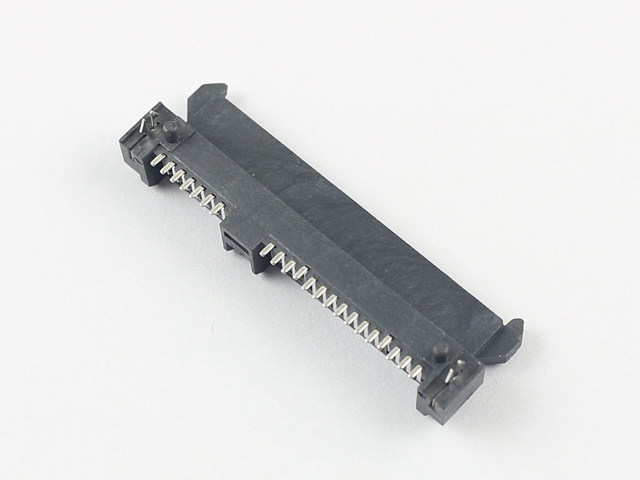

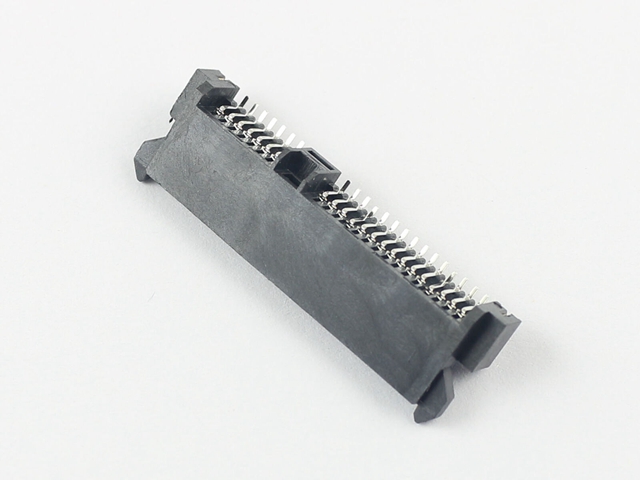

SATA 7+15P Female Connector,SMD,H6.70mm

MATERIAL:
Housing:LCP,UL94-V0  ,Black
Contact:Copper alloy,50u”min. Nickel plating
Overall;100u” min.Tin on solder tail;Gold plating on contact area.
 Hook:Copper alloy,Nickel and Tin plating overall.
ELECTRICAL:
Contact Resistance: 25 mΩ  Max.
Insulation Resistance:1000 MΩ Min.
Dielectric Withstanding Voltage: 500VRMS Min.
