Russia Standard Circular Connector

  • Model: KLS15-229
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

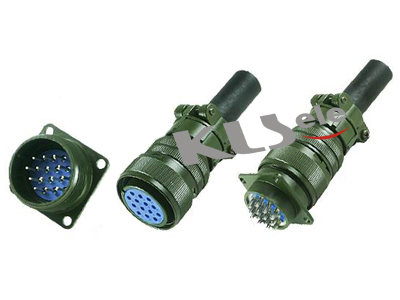

Circular Connector With Russia Standard PB Type
KLS15-229-PB series circular connectors are used extensively in line connections between electrical equipment,various instruments and meters. These connectors have the features of small volume,light weight,convenient application,high durability of plugging and unplugging,threaded coupling,good sealing performance,high conductivity and high dielectric strength. They are made according to the standard SJ/T10496. They are for military and industrial  applications.

ORDER INFORMATION:
KLS15-229-PB-20-4 STK/ZJ

PB-   PB series connector
20-    Shell size: 20,28,32,40,48
4-      Number of Pins:2,3,4,5,6,7,8,9,10,12,13,14,15,16,17,19,20,26,31,42
         STK-Straight Plug Socket   RTK- Right Plug Socket    ZJ-Flange Receptacle Pin

Working condition:
Environment temperature:sealed:    -55ºC~+70ºC
Non-sealed:   -55ºC~+50ºC
Relative humidity:    98% at +40ºC
Atmospheric pressure: 2Kpa
Vibration:frequency:  100M/S2  at 10~200Hz
Impact:frequency :    250M/S2  at 40~100Hz
Centrifugal: 250 M/S2
Life span:500 cycles
