Russia Energy Meter LCD Or Counter type

  • Model: KLS11-OREM-02
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

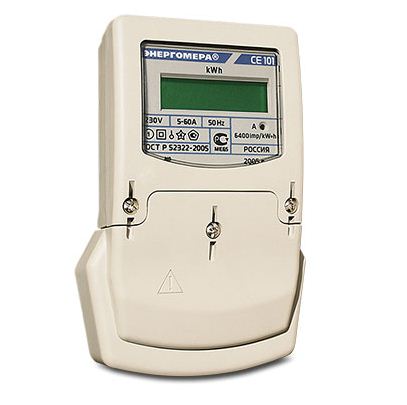

Single phase meter with KEMA certificate only with kWh measurement. It is widely used in Sub-metering system. The Max. Current could up to 100A.

Technical Parameters

Voltage: 110V/220V/230V/240V
Current: 10(100)A
Accuracy class: 1.0
Standard:  IEC62052-11, IEC62053-21
Frequency: 50Hz/60Hz
Impulse constant: 800imp/kWh/1600imp/kWh/3200imp/kWh/6400imp/kWh
Display: LCD 6+1 / LCD 6+2
Power consumption:  ≤0.3VA  ≤6W
Starting current: 0.4%Ib
Working Temperature: -30~70℃
Storage Temperature: -40~75℃
Average humidity value of year:  ≤75%
Meter Size: 179*120*60mm
Net Weight: 0.4872kg
