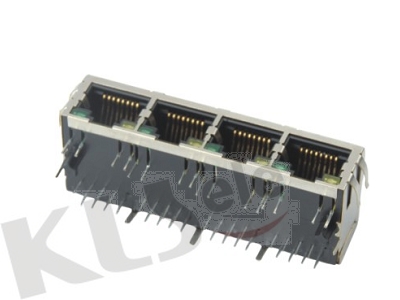

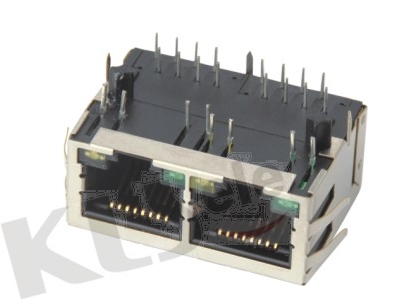

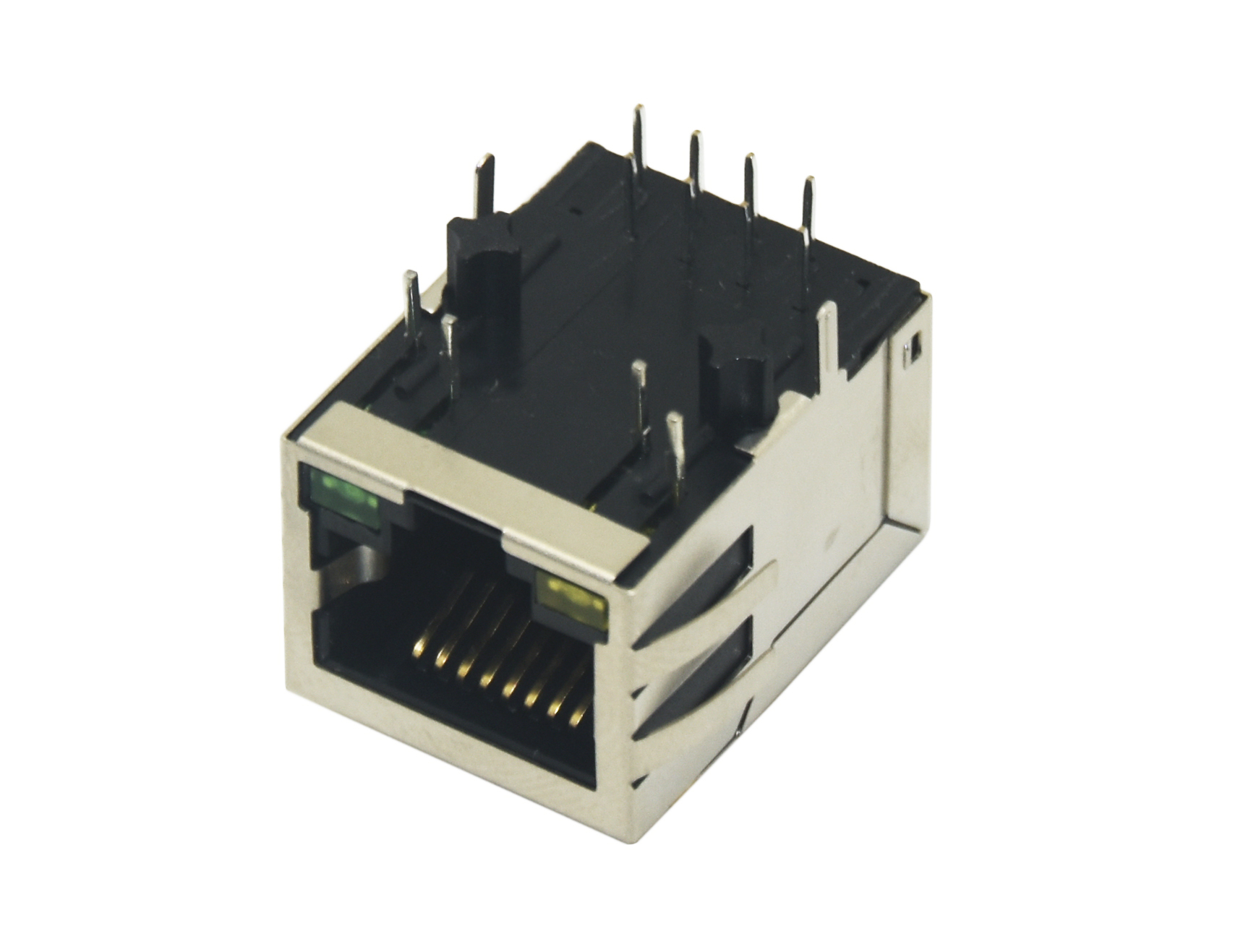

RJ45 Modular Jack with LED/Transformer (Right PCB Mount)
MATERIAL:
1.Housing Material: Glass Filled Plyester UL94V-0 PBT, Nylon
2.Housing Color: Black or others
3.Contact Material: Phosphor Bronze
4.Plating: Gold plating over nickel. Gold plating thickness
1.5u”/ 3u”/ 6u”/ 15u”/ 30u”/ 50u”
5.Shield: 0.23 Thickness Brass with nickel plated

ELECTRICAL:
1.Current Rating: 1.5 Amp
2.Voltage Rating: 125VAC
3.Contact Resistance: 30MΩ Max.
4.Insulation Resistance: 500MΩ Min. @ 500 VDC
5.Withstanding Voltage: 1000VAC RMS 50Hz 1 minute

KLS12-TL002.pdf
