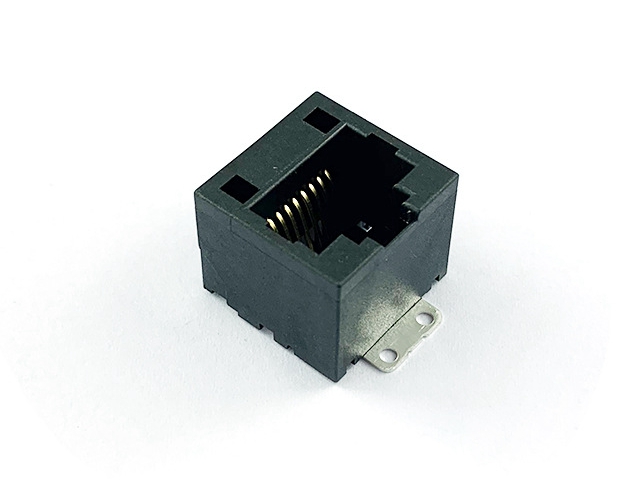

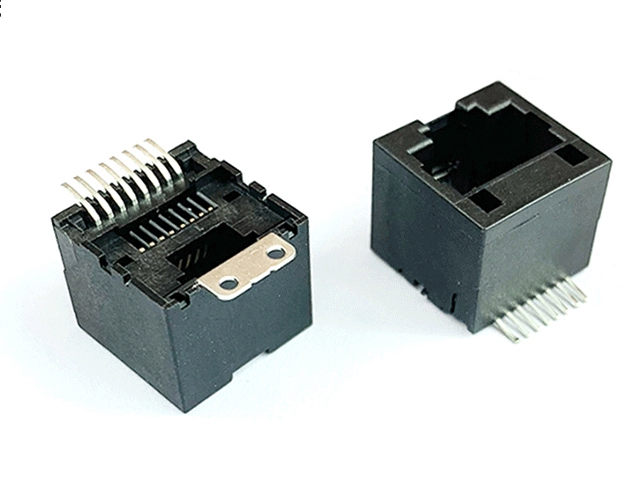

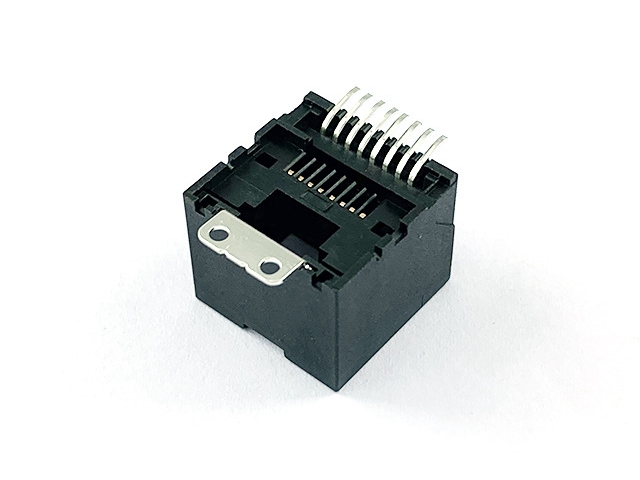

RJ45-8P8C SMD Jack Vertical,without Shell

  • Model: KLS12-SMT04-8P8C
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

RJ45-8P8C SMD Jack Vertical,without Shell
ELECTRICAL
1.Voltage Rating: 125VAC
2.Current Rating: 1.5A
3.Contact Resistance: 30mΩ Max.
4.Insulation Resistance: 500MΩ Min.@500VDC
5.Withstanding Resistance :1000VAC RMS. 50Hz 1minute

MATERIALS
1.Housing: High Temp. Thermoplastic Flammability UL 94V-0
2.Contact: Phosphor Bronze Flat Pin
3.Plating:Gold Plating over nickel in contact,Tin Planting over nickel in solder area

MECHANICAL
1.Durability: 750 cycles Min.
2.PCB Retention pre-solder: 1 LB Min.

ENVIRONMENTAL
1. STORAGE: -40ºC~80ºC
