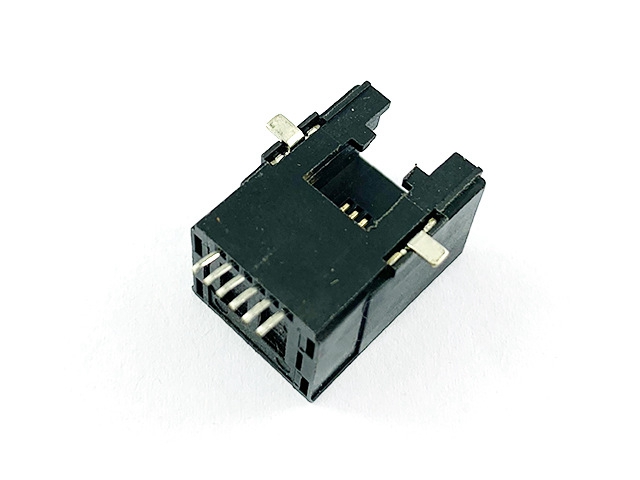

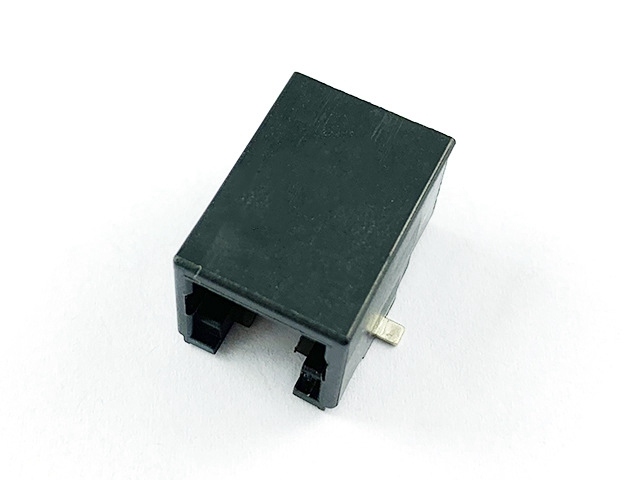

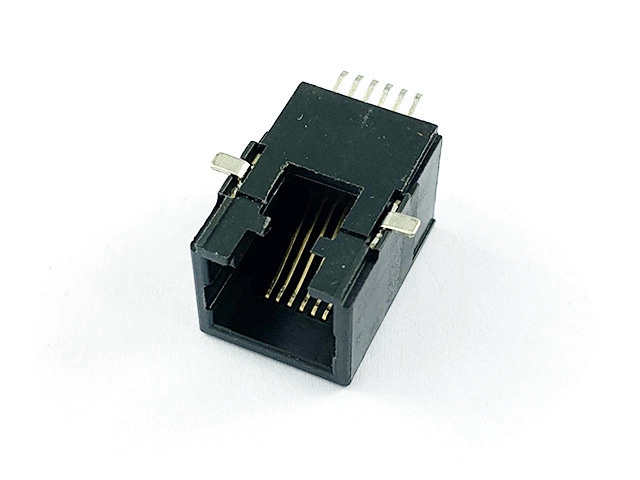

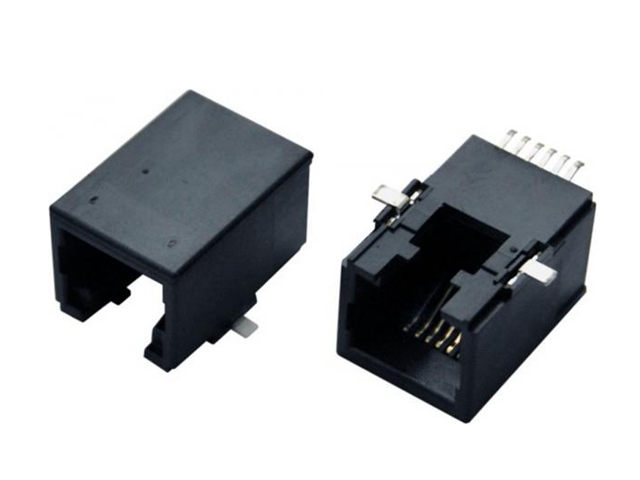

RJ12-6P6C SMD Jack Horizontal,without Shielded
ELECTRICAL
1.Voltage Rating: 125VAC
2.Current Rating: 1.5A
3.Contact Resistance: 30mΩ Max.
4.Insulation Resistance: 500MΩ Min.@500VDC
5.Withstanding Resistance :1000VAC RMS. 50Hz 1minute

MATERIALS
1.Housing: High Temp. Thermoplastic Flammability UL 94V-0
2.Contact: Phosphor Bronze Flat Pin
3.Plating:Gold Plating over nickel in contact,Tin Planting over nickel in solder area

MECHANICAL
1.Durability: 750 cycles Min.
2.PCB Retention pre-solder: 1 LB Min.

ENVIRONMENTAL
1. STORAGE: -40ºC~80ºC

KLS12-SMT15-6P6C.pdf
