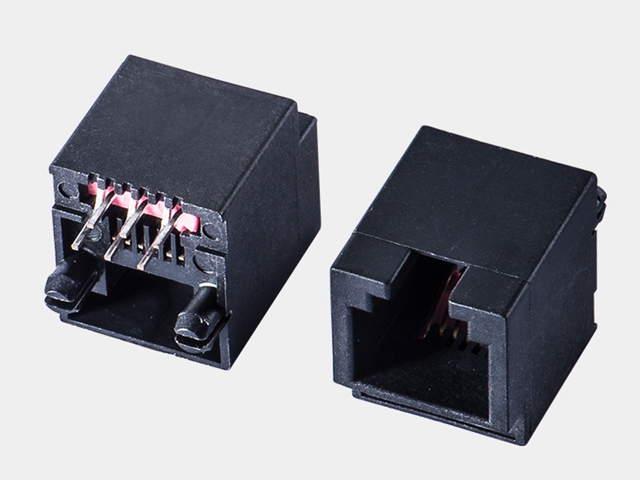

RJ12 6P6C Jack Vertical

  • Model: KLS12-152-6P6C
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Housing:    Engineering Thermoplastic
Flammability Rating : UL94V-0
Contacts:  Phosphor Bronze
Plating:     Gold Plating Over Nickel in Contact.
Tin Plating Over Nickel in Solder Area.

Electrical:
Voltage Rating:           125VAC
Current Rating:           1.5A
Contact Resistance:    40mΩ Max.
Insulation Resistance: 1000MΩ Min. @500VDC
Dielectric Strength:    1000VAC Rms 60Hz,1 Min.
Durability:                  750 cycles Min.
Operation Temperature:-20°C~+75°C
