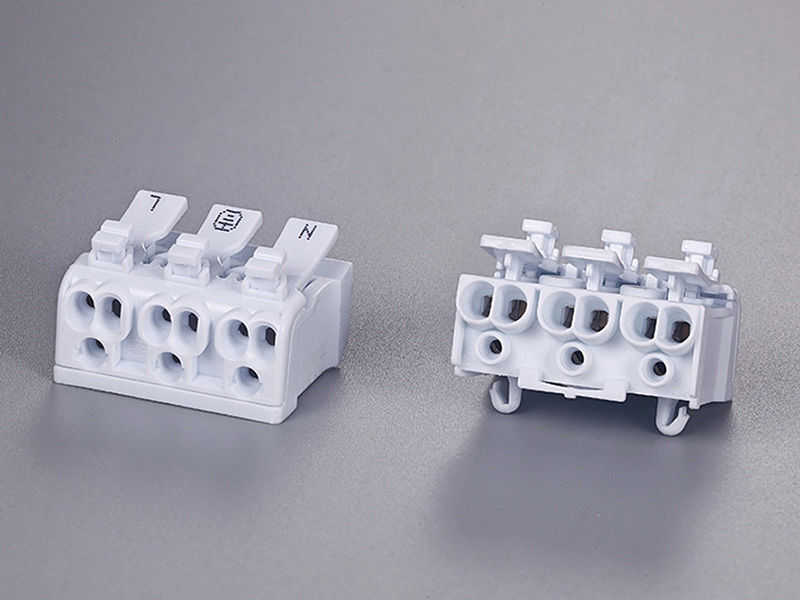

PUSH wire Connector, 2.5mm², 3 poles,Double Button

  • Model: KLS2-238M-03P
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Electrical :
Rated Voltage:                450V(IEC/EN)/300V(UL)
Rated Current:                16A
Contact resistance:         20 mΩ
Insulation resistance:      5000MΩ/DC1000V
Withstanding voltage :     AC2500V/1 min
Cross Section:                 Solid conductor & Stranded conductor
A holes:  0.5-2.5mm²/14-20AWG
B holes:  0.5-1.5mm²/16-20AWG
C holes:  0.5-2.5mm²/14-20AWG
Insulation Materials:        PA 66,WHITE,UL94V-2
Contact:                          Copper,Nickel Plated
Wire guard :                    Stainless steel

Number of   poles:             3  poles
Strip length :                 8-10mm
Operating Temperature:    -40°C~+105°C
