Push Switch 6P2T

  • Model: KLS7-PS-909-18
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

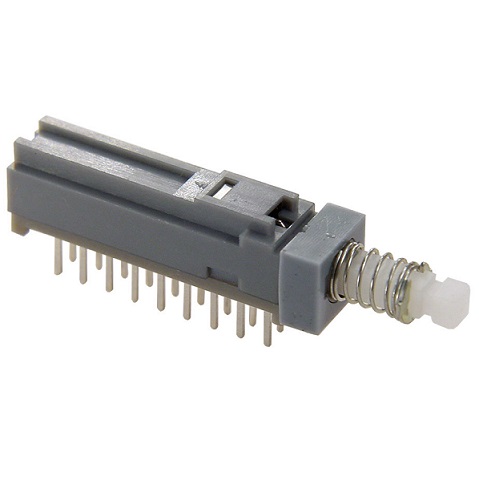

Push Switch 6P2T

SPECIFICATION:
Rating: 0.1A 30V DC
PIN Pitch: 2.5mm
Operating Force: 380 ± 50gf
Insulation Resistance: 100 MΩ Mim. 250V DC
Contact Resistance: 50MΩ Max.
Withatand Voltage: AC 250 V 1 Minute
Operating Temperature: -25oC ~ +65oC
Mechanical Life: 30,000 cycles
Electrical Life: 10,000 cycles

FUNCTION:
L = Lock Type
N = Non Lock Type
