Push Switch

  • Model: KLS7-PS-002
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

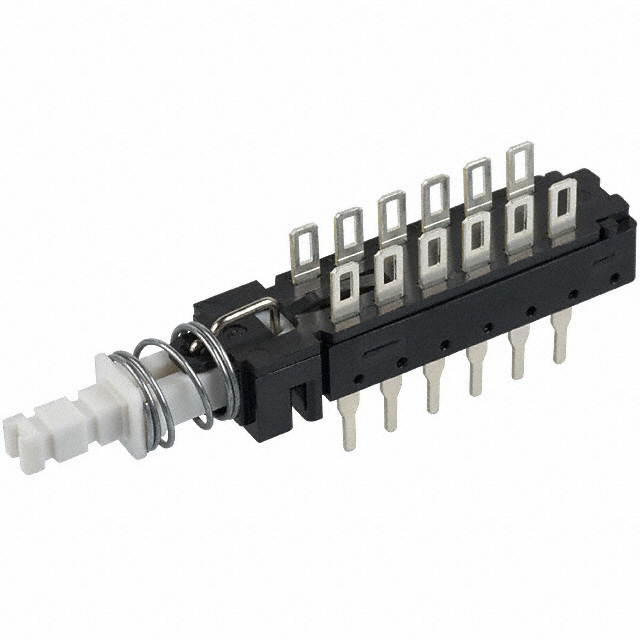

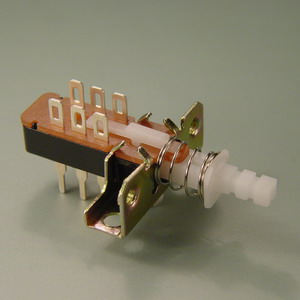

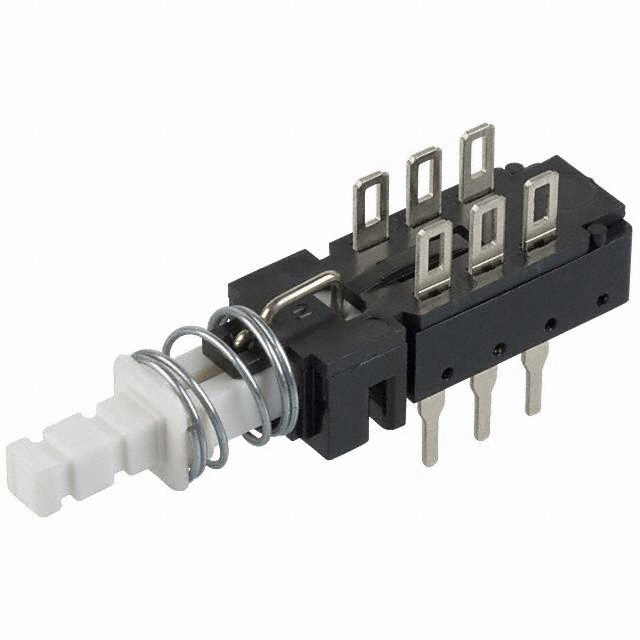

Push Switch
Self-lock and Non-lock

Rating: 0.3A 50V DC
Screw Hole: 20mm
PIN Pitch: 4.0mm
Operating Force: 300 ± 100gf
Insulation Resistance: 100 MΩ Mim. 500V DC
Contact Resistance: 20MΩ Max.
Dielectric Strength: AC 500 V 1 Minute
Operating Temperature: -40oC ~ +80oC
