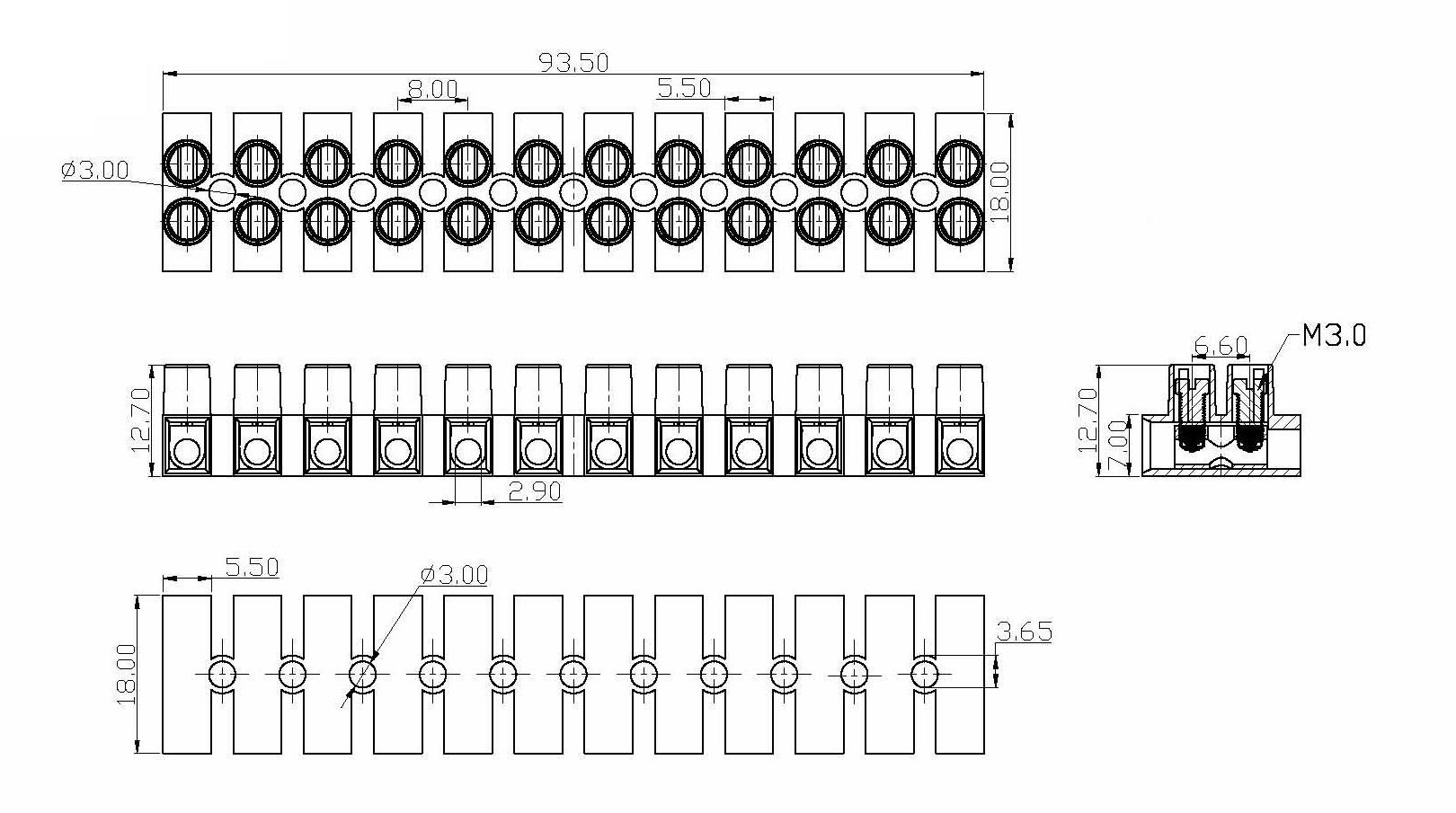

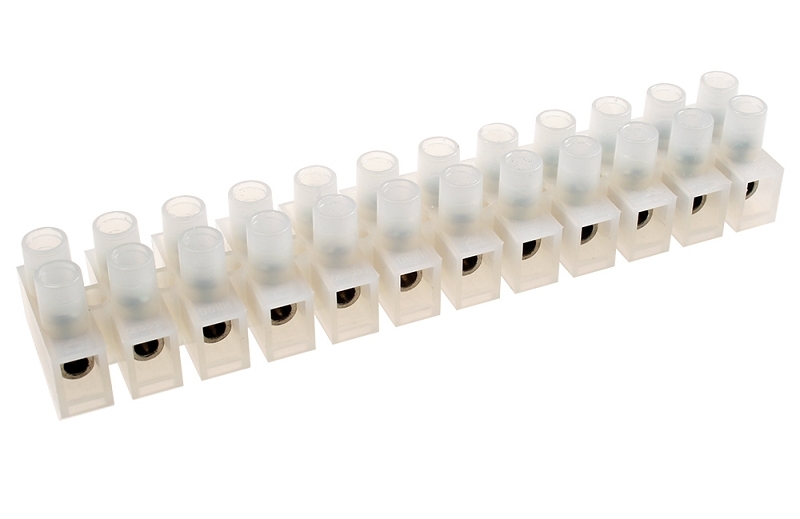

Pitch:8.0mm with The plane

  • Model: KLS2-6200
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Order Information:
KLS2  – 6200 DS- 12P – 9  S

6200: Pitch 8.0mm with The plane
DS:    囗: Without shrapnel       DS: With Shrapnel
12P:  Pin Number
9:      White Color
S:      Slot Serew

Material:
Screw: M3 Steel, any Zinc plated
Terminal: Brass, Ni plated
Housing: PA66, UL94V – 2

Electrical:
Rated Voltage:    450V
Rated current:     17.5 A
Wire Range:        1.5 mm²

Mechanical:
Temperature Range: – 30 ℃ ~ + 105 ℃
Strip length: 5.0 mm
