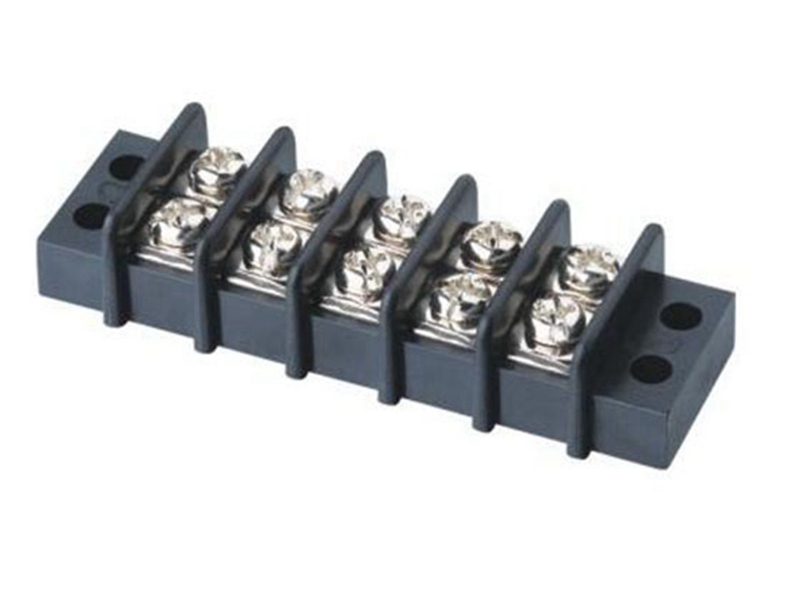

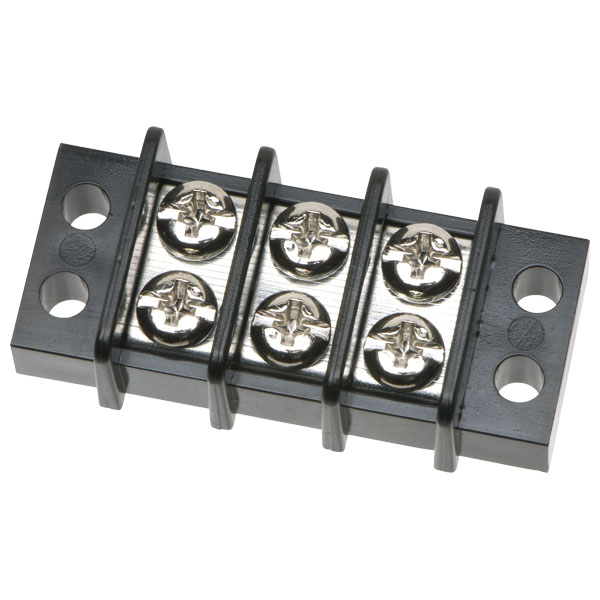

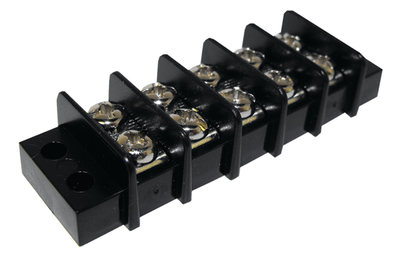

Pitch 9.5mm Barrier Terminal Block
- Product Details
Material:
Screw: M3.5,Steel,Ni Plated
Pin header: Brass, Tin Plated
Housing: PA66, UL94V-0,Black
Electrical:
Rated voltage: 300V
Rated current: 20A
Wire range: 22~12AWG 2.5mm²
Contact Resistance: 20 m Ω
Insulation resistance: 500MΩ/DC500V
Withstand voltage: AC2000V / 1 min
Mechanical:
Temp. Range: -40 ° C ~ + 105 ° C
Torque: 0.8Nm (7.0Lb.in)
