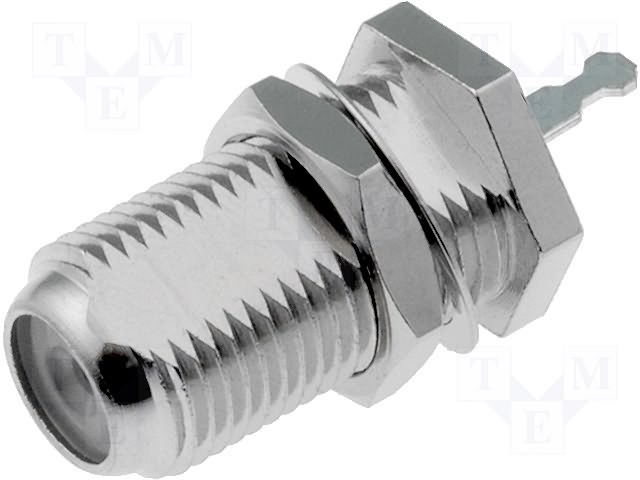

Panel Mount F Connector (Jack Female,75 Ω)
- Product Details
| Connector Style | F Type |
|---|---|
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Shield Termination | Solder |
| Impedance | 75 Ohm |
| Mounting Type | Panel Mount, Bulkhead |
| Cable Group | – |
| Fastening Type | Threaded |
| Frequency – Max | 750MHz |
| Features | – |
| Housing Color | Silver |
| Ingress Protection | – |
| Body Material | Brass |
| Body Finish | Nickel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Tin |
| Dielectric Material | Polyethylene (PE) |
