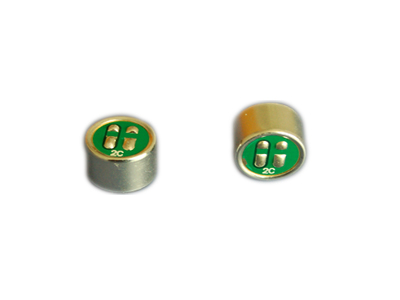

Omni-direction mini microphone MM9765A Serie

  • Model: KLS3-MM9765AP
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Specifications:
Sensityvity(1KHz,0dB=1V/Pa):-32±3dB ; -34±3dB ; -36±3dB ;
-38±3dB ;-40±3dB ;-42±3dB ; -44±3dB
Directivity:Omnidire ctional
Impedance:2.2KΩ Max.
Current consumption:0.5mA Max.
Operation voltage:1.0~10V
S/N ratio:60dB Min.
Sensitivity vs. Voltage:3dB Max. at VS=2.0V~1.5V
Std. Test Condition:94dB S.P.L @1KHz VS=2.0V
Frequency:20~16,000Hz
