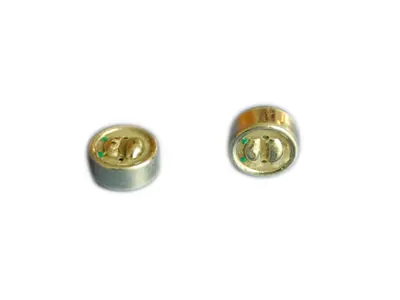

Noise Cancelling mini microphone MN6027 Serie

  • Model: KLS3-MN6027P
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Specifications:
Sensityvity(1KHz,0dB=1V/Pa):-38±3dB;-40±3dB; -42±3dB; -44±3dB;
Directivity:Noise Cancelling
Impedance:2.2KΩ Max.
Current consumption:0.5mA Max.
Operation voltage:1.0~10V
S/N ratio:60dB Min.
Sensitivity vs. Voltage:3dB Max. at VS=2.0V~1.5V
Std. Test Condition:94dB S.P.L @1KHz VS=2.0V
Frequency:20~16,000Hz
