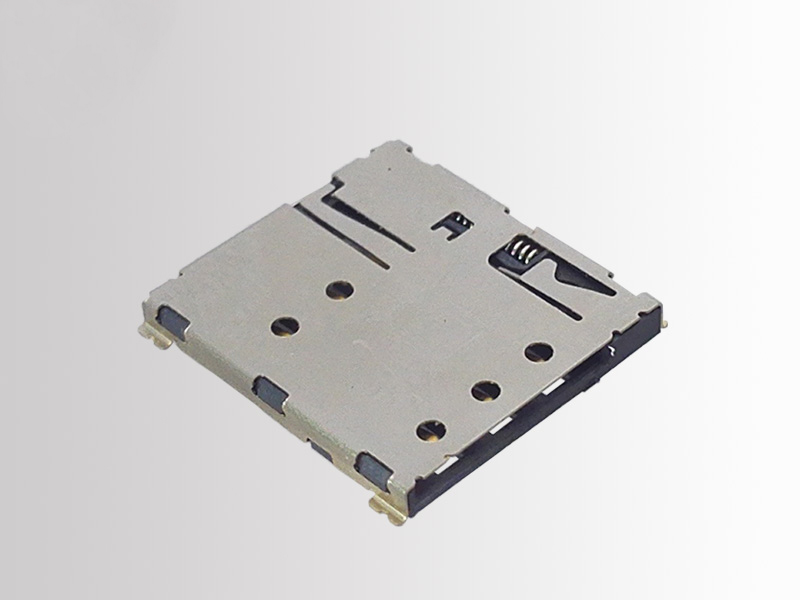

Nano SIM Card Connector,PUSH PUSH,6Pin,H1.37mm,with CD Pin

Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Contact:Copper Alloy,Plated 50u” Ni Overall,PAD Au 1u”.
Shell:SUS.All Ni 30U/MIN.
Electrical:
Current Rating:0.5A  ampers
Voltage Rating:5V AC/DC

Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Operating Temperature: -45ºC~+85ºC

KLS1-SIM-066.pdf
