Modular Surface Jack RJ11/RJ12

  • Model: KLS12-185A-6P4C/

    KLS12-185A-6P6C/

    KLS12-185B-6P4C/

    KLS12-185B-6P6C

  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

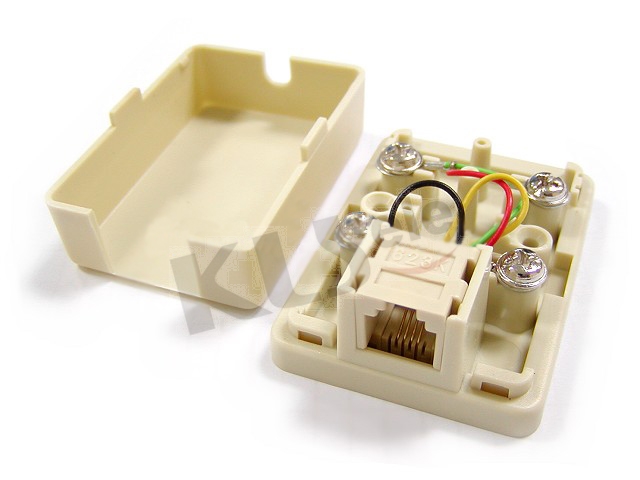

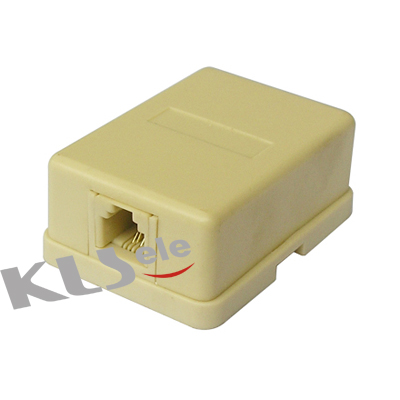

Modular Surface Jack RJ11/RJ12

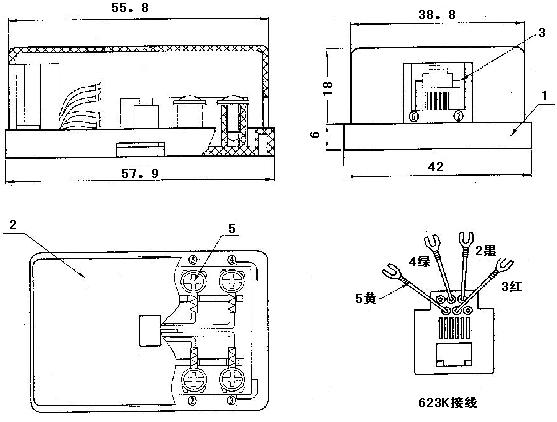

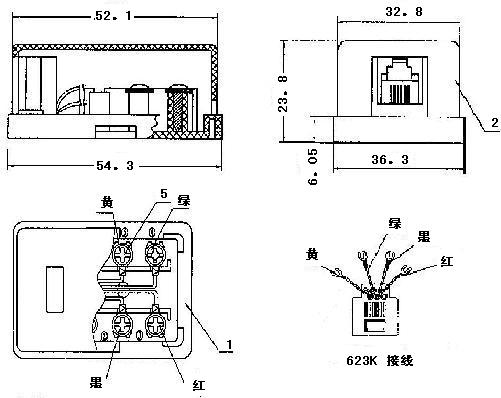

RJ11 Adapter :  KLS12-185A-6P4C / KLS12-185B-6P4C
RJ12 Adapter :  KLS12-185A-6P6C / KLS12-185B-6P6C

MATERIAL
HOUSING: ABS
CONTACT: PHOSPHOR BRONZE,HARD GOLD
SHIELDINJG: 0.25mm THICKNESS COPPER ALLOY WITH TIN PLATED
GOLD PLATING: 3u INCH,6u INCH,15u INCH,30u INCH,50u INCH

ELECTRICAL
CURRENT RATING: 1.5AMPS
VOLTAGE RATING: 125VAC
WITHSTANDING VOLTAGE: AC1000V RMS 50Hz or 60Hz 1Min
INSULATION RESISTANCE: 100MEGOHMS MIN
CONTACT RESISTANCE: 39MILLMHOS MAX

WORKING  TEMPERATURE :  -35°C ~80°C
