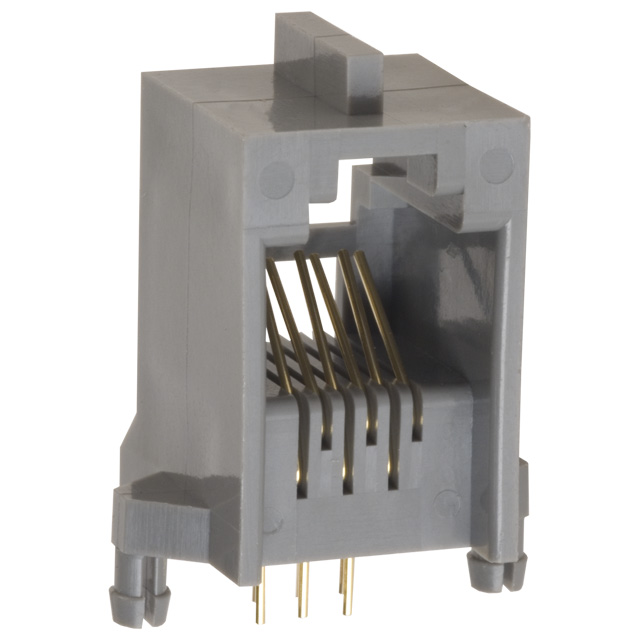

Modular Jack RJ11/RJ12/RJ14/RJ25

  • Model: KLS12-301-6P
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Modular Jack RJ11/RJ12/RJ14/RJ25
MATERIAL:
1.Housing Material: Glass Filled Polyester UL94V-0 PBT, NYLON
2.Housing Color: Black, Gray, Ivory, White or Others
3.Contact Material: Phosphor Bronze Φ0.46mm
4.Plating: Gold plating over nickel. Gold plating thickness
1.5u “/ 3u” / 6u “/ 15u” / 30u “/ 50u”

ELECTRICAL:
1.Current Rating:1.5Amp
2.Voltage Rating:125VAC
3.Contact Resistance: 30MΩ Max.
4.Insulation Resistance: 500MΩ Min @500VDC
5.Withstanding Voltage:1000VAC RMS 50Hz 1 minute

MECHANICAL:
1.Durability : 750 cycles Min
2.PCB Retention pre-solder : 1 LB MIN

ENVIRONMENTAL:
1.Storage :- 40ºC~+80 ºC
2.Operation:-40ºC~+70ºC
