KLS7-MS-M12-102-A2         ON-ON
KLS7-MS-M12-112-A2         ON-(ON)
KLS7-MS-M12-103-A2         ON-OFF-ON
KLS7-MS-M12-113-A2         ON-OFF-(ON)
KLS7-MS-M12-123-A2         (ON)-OFF-(ON)

KLS7 MS-M12-202-A2          ON-ON
KLS7-MS-M12-212-A2         ON-(ON)
KLS7-MS-M12-203-A2         ON-OFF-ON
KLS7-MS-M12-213-A2         ON-OFF-(ON)
KLS7-MS-M12-223-A2         (ON)-OFF-(ON)

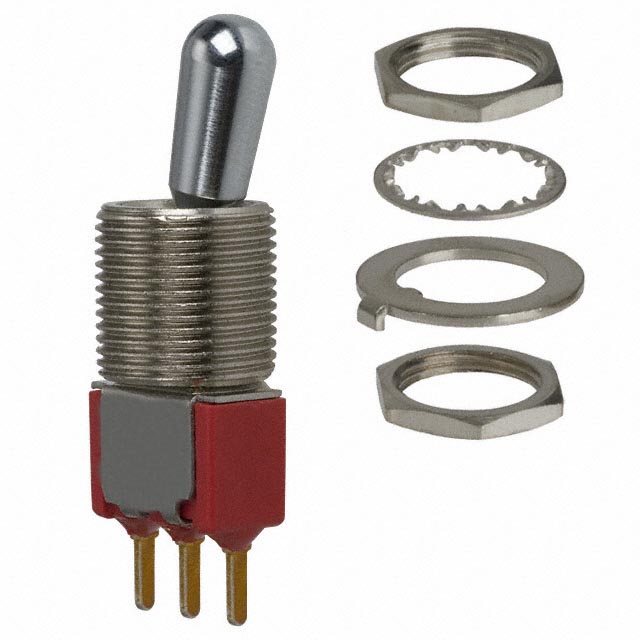

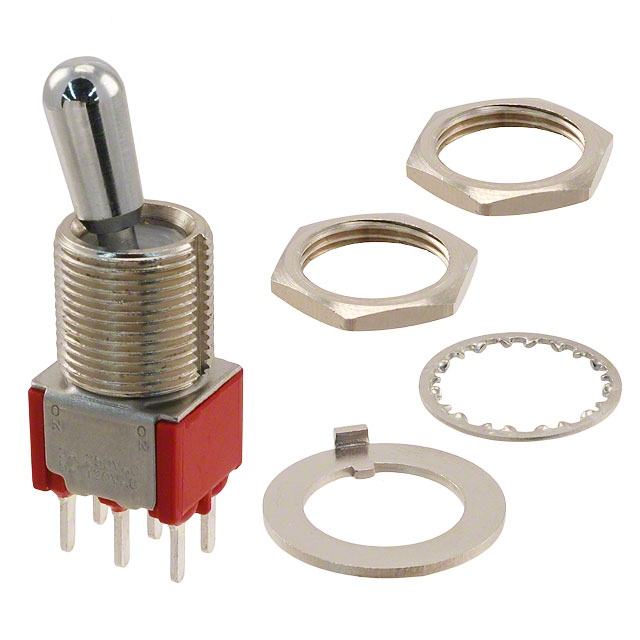

Miniature Toggle switch
SPECIFICATIONS
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
