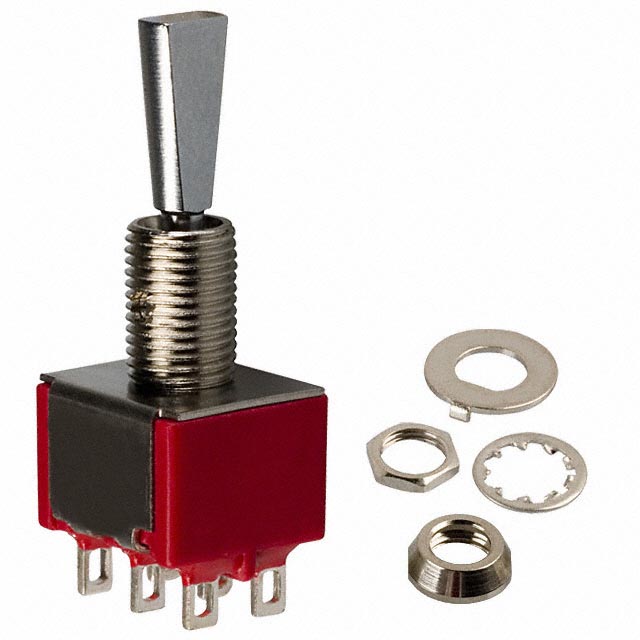

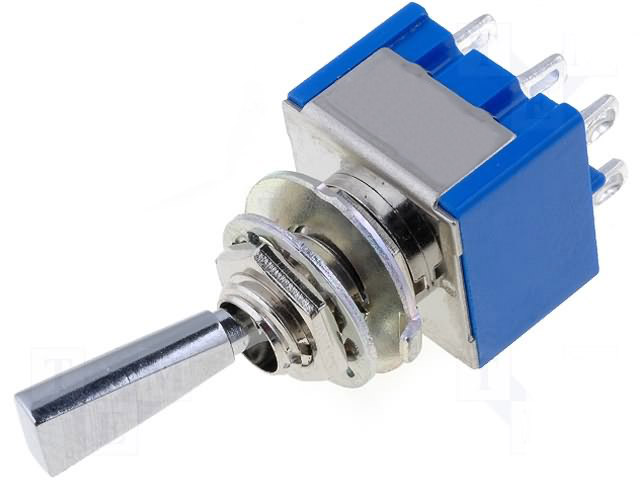

Miniature Toggle switch

  • Model: KLS7-MS-102-F1 / KLS7-MS-103-F1/

    KLS7-MS-202-F1 / KLS7-MS-203-F1

  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

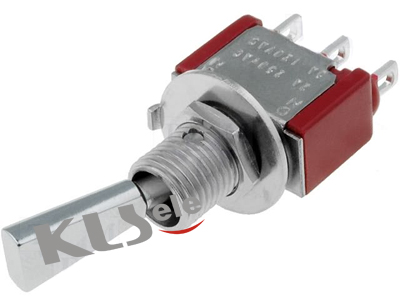

KLS7-MS-102-F1 ON-ON
KLS7-MS-112-F1 ON-(ON)
KLS7-MS-103-F1 ON-OFF-ON
KLS7-MS-113-F1 ON-OFF-(ON)
KLS7-MS-123-F1 (ON)-OFF-(ON)

KLS7-MS-202-F1 ON-ON
KLS7-MS-212-F1 ON-(ON)
KLS7-MS-203-F1 ON-OFF-ON
KLS7-MS-213-F1 ON-OFF-(ON)
KLS7-MS-223-F1 (ON)-OFF-(ON)

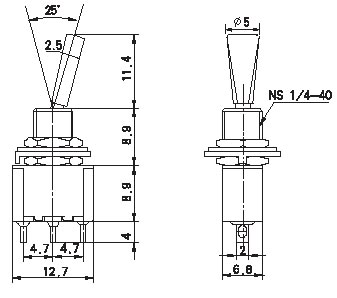

Miniature Toggle switch
SPECIFICATIONS
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles
