KLS7-MS-201-A2         ON-OFF
KLS7-MS-211-A2         (ON)-OFF
KLS7-MS-202-A2         ON-ON
KLS7-MS-212-A2         ON-(ON)
KLS7-MS-203-A2         ON-OFF-ON
KLS7-MS-213-A2         ON-OFF-(ON)
KLS7-MS-223-A2         (ON)-OFF-(ON)

KLS7-MS-201-A1         ON-OFF
KLS7-MS-211-A1         (ON)-OFF
KLS7-MS-202-A1         ON-ON
KLS7-MS-212-A1         ON-(ON)
KLS7-MS-203-A1         ON-OFF-ON
KLS7-MS-213-A1         ON-OFF-(ON)
KLS7-MS-223-A1         (ON)-OFF-(ON)

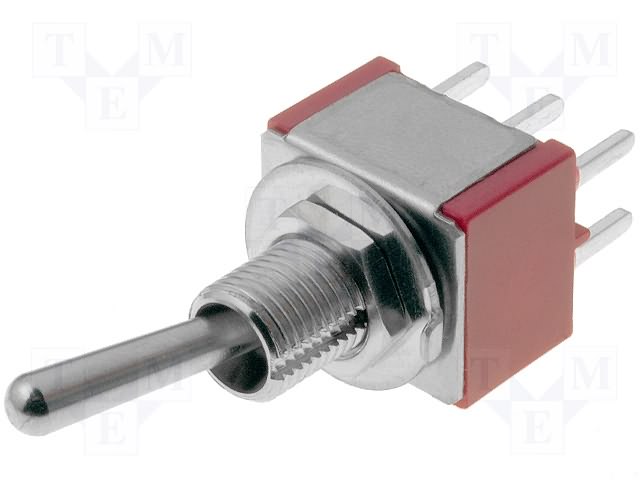

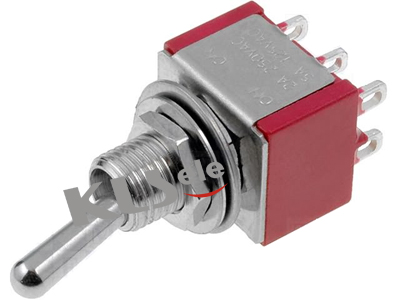

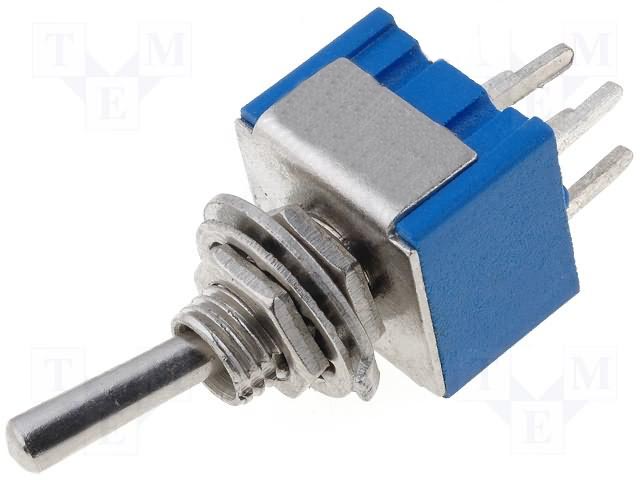

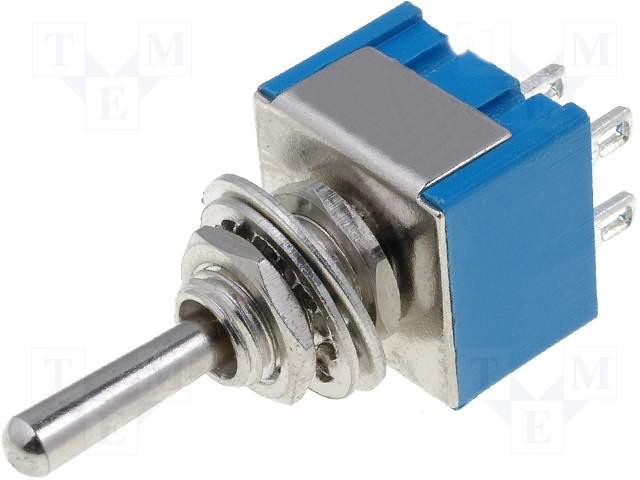

Miniature Toggle switch
SPECIFICATIONS
Rating: 5A 125VAC; 2A 250VAC
Contact Resistance: 20MΩ max
Insulation Resistance:500V DC 1000MΩ Min
Dielectric Strength:1500V AC 1 Minute
Operating Temperature:-55ºC +85ºC
Electrical Life :20,000 cycles

KLS7-MS-201-A1-A2.pdf
