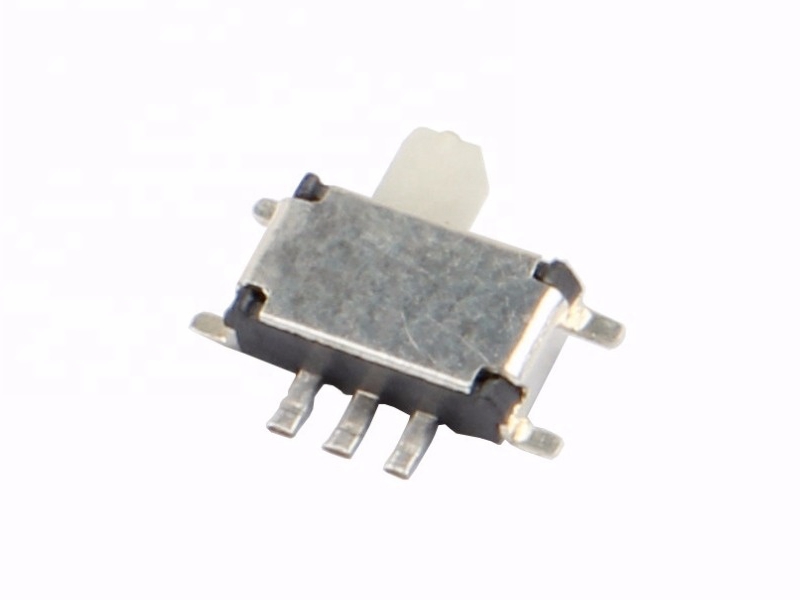

Mini Slide Switch, 5.0×2.7×1.4mm,SPDT SMD

Model: KLS7-MSS-1290CP
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Rating: 0.3A 6V DC
Function: 1P2T
Timing: Non-shorting
Contact Resistance: 70mΩ Max.
Insulation Resistance:100MΩ Min. at 500V DC
Dielectric Strength: AC 500V for 1 min
Operating Temper: -20°C ~+75°C
Operating Force: 160 ± 50gf
Life Test: 10000 Cycles
PACKING: 3000PCS/Reel

PDF

KLS7-MSS-1290CP.pdf
