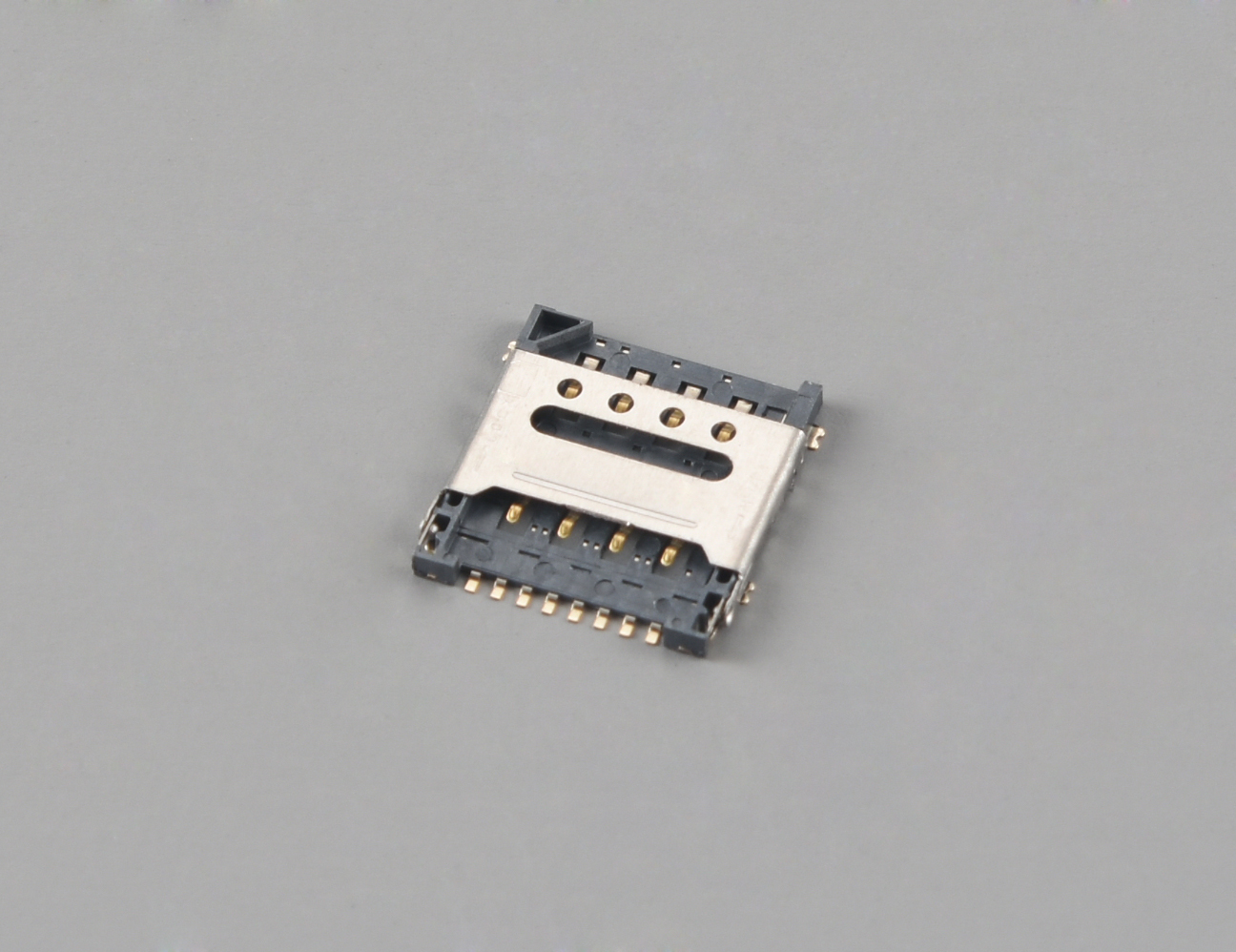

Micro SIM Card Connector,8Pin H1.5mm,Hinged type
- Product Details
Micro SIM Card Connector,8Pin H1.5mm,Hinged type
Material
Housing:Thermoplastic,UL94V-0.
Terminal:Phosphor Bronze,T=0.15,Ni Plated Under,Au Plated On Contact Area,G/F Plated On Soldertail.
Shell:Stainless Steel,T=0.15,Ni Plated Under,G/F Plated On Soldertail.
Electrical
Contact Resistance:60mΩ Max.
Insulation Resistance:1000MΩ Min.
Dielectric Withstanding Voltage:500V AC For 1 Minute.
Durability:5000 Cycles.
Operating Temperature: -45ºC~+85ºC
