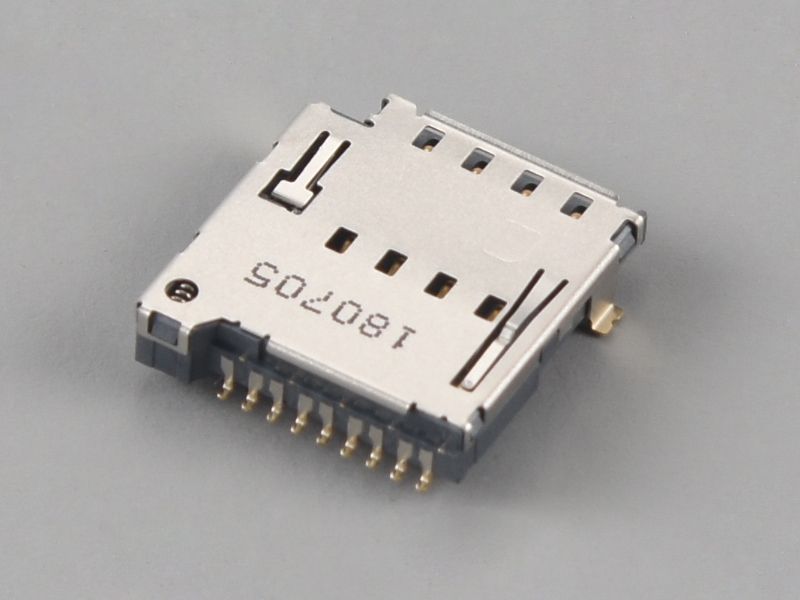

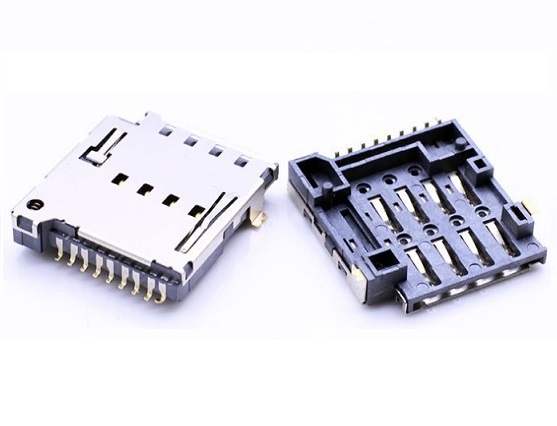

Micro SIM Card Connector,8P＋1P,PUSH PUSH,H3.65mm

Material:
Housing:High Temperature Thermoplastic,UL94V-0,Black.
Terminal:Copper Alloy.Contact Au:G.F Plating
Shell:Stainless Steel.Slider Plating Au:1u”,Ni:30u” Min.

Electrical:
Current Rating: 1.0A
Rating Voltage:50V
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Dielectric Withstanding Voltage:500V AC
Humidity:80% R.H. Max.
Durability:5000 Cycles Min.
Operating Temperature: -45ºC~+85ºC

KLS1-SIM-096.pdf
