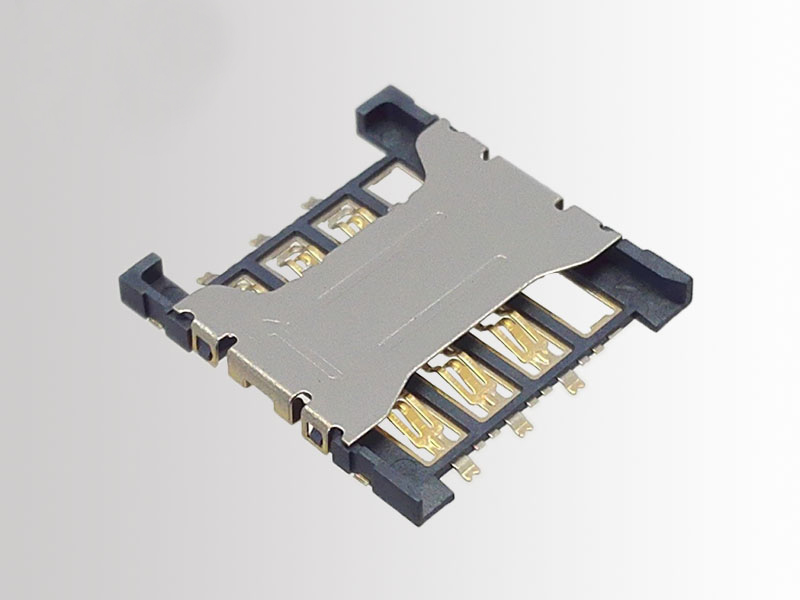

Micro SIM Card Connector,6P,PUSH PULL,H1.5mm

Material
Housing:Thermoplastic,UL94V-0.
Terminal:Copper Alloy,Gold Plated On Contact Area and Solder Tails,Nickel Plated Overall.
Shell:Stainless Steel.Nickel Plated Overall.GoldPlated On Solder Tails.

Electrical:
Current Rating:1.0 A max.
Contact Resistance:30mΩ Max.
Dielectric Withstanding Voltage:500V AC
Insulation Resistance:1000MΩ Min./500V DC
Operating Temperature: -45ºC~+85ºC

KLS1-SIM-099.pdf
