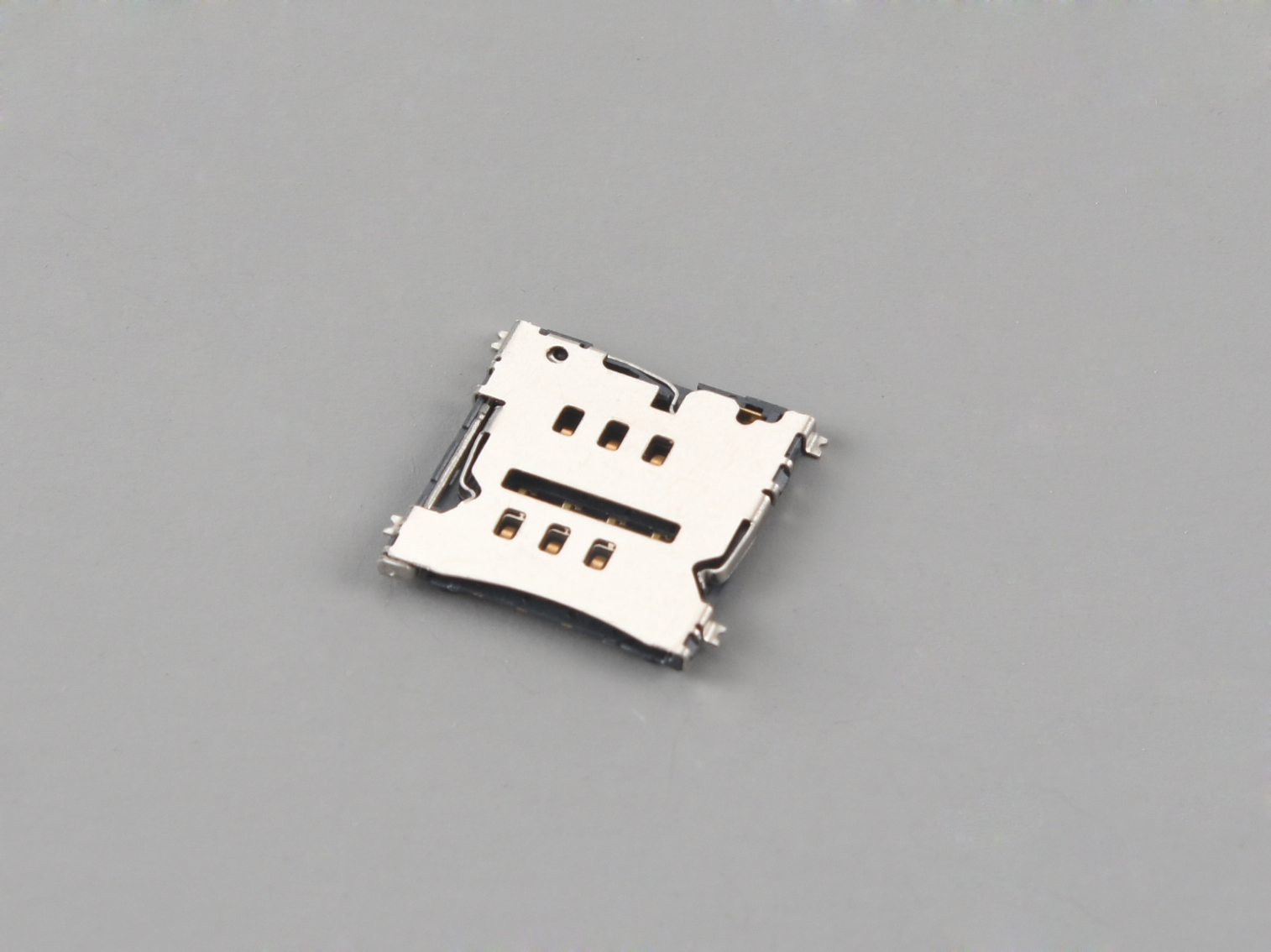

Micro SIM Card Connector,6Pin H1.5mm,Tray type
- Product Details
Micro SIM Card Connector,6Pin H1.5mm,Tray type
Material:
Insulator:Hi–Temperature Plastic,UL94V-0,Black.
Terminal:Copper Alloy.Gold Flash Plating on all terminal,Aad 50u” min Nickel Underplated on allover.
Shell:50u” Nickel Underplated on allover,Gold flash on solder pad.
Electrical:
Current Rating:0.5A
Voltage Rating Voltage:5.0 vrms
Insulation Resistance:1000MΩ Min./500V DC
Withstanding Voltage:250V ACrms For 1Minute
Contact Resistance:100mΩ Max.AT 10mA/20mV max.
Mating Cycles:5000 Insertions
Operating Temperature: -45ºC~+85ºC
