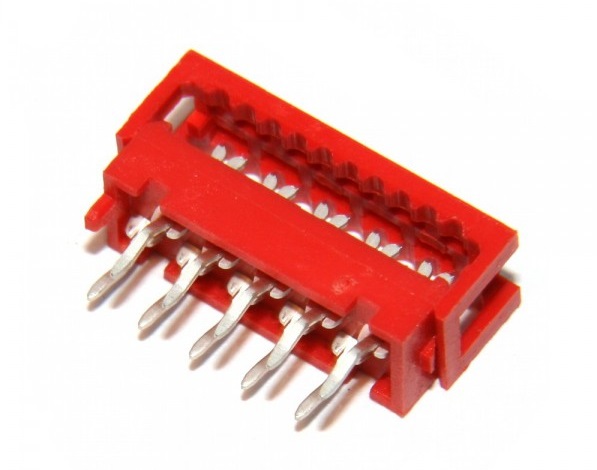

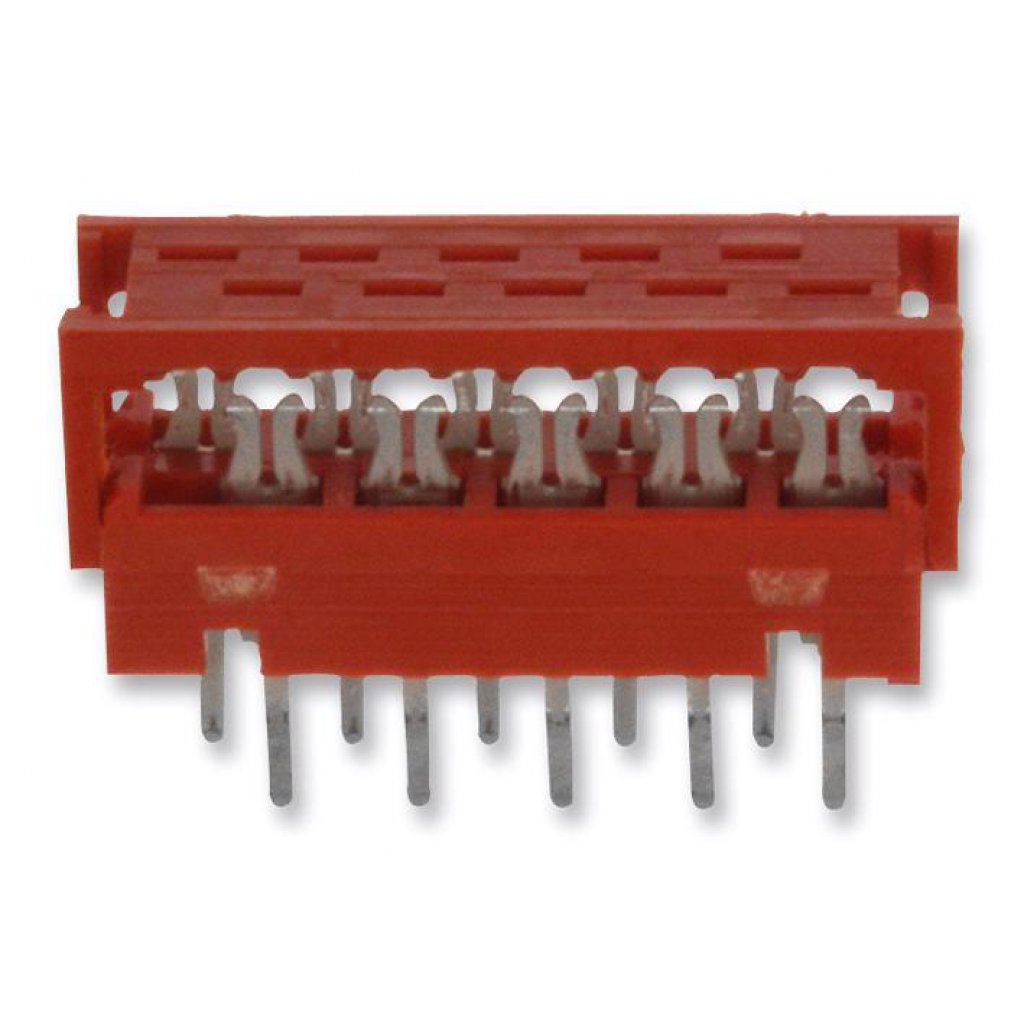

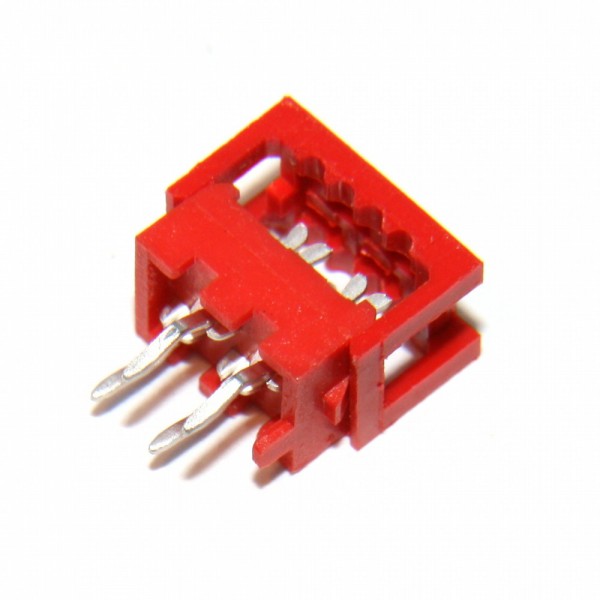

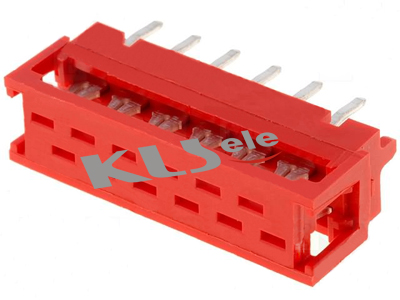

Micro Match Dip Plug IDC Connector

  • Model: KLS1-204A
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Micro Match Connector IDC Plug IDC Type.

Order Information:
KLS1-204A-XX-R-口
XX-No.of 04~26pin
Color: R=Red B=Black
Material:NONE=PBT E=PA46

Material:
Housing: PBT UL94V-0
Contacts: Phosphor bronze
Plating:Sn over 50u” nickel
Cable: 1.27mm (0.050″) pitch flat cable
Electrical Characteristics:
Current Rating: 1.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage:500V AC
Operating Temperature: -40ºC~+105ºC
