Mechanical Keyboard switches KS01 series

  • Model: KLS7-KS01
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

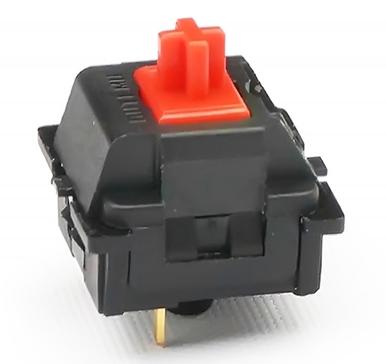

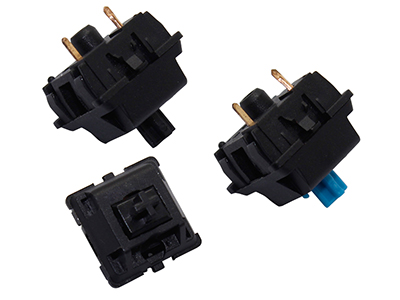

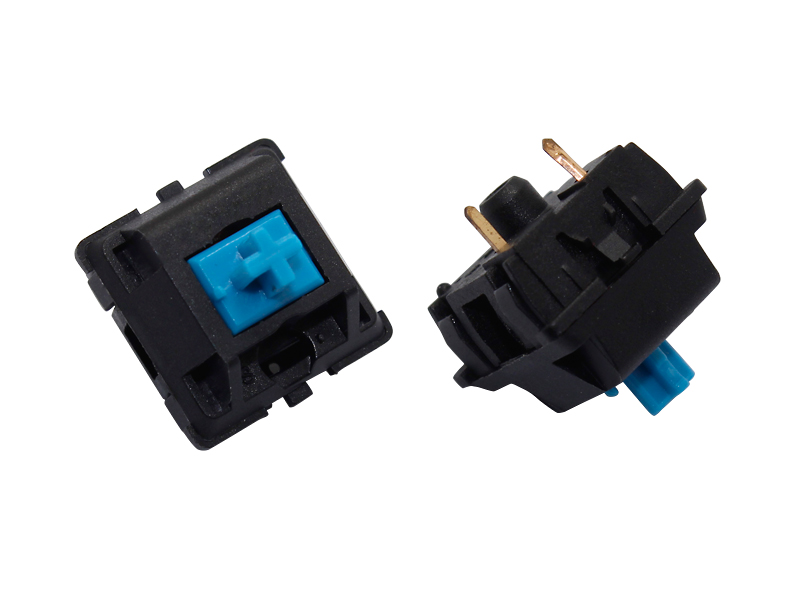

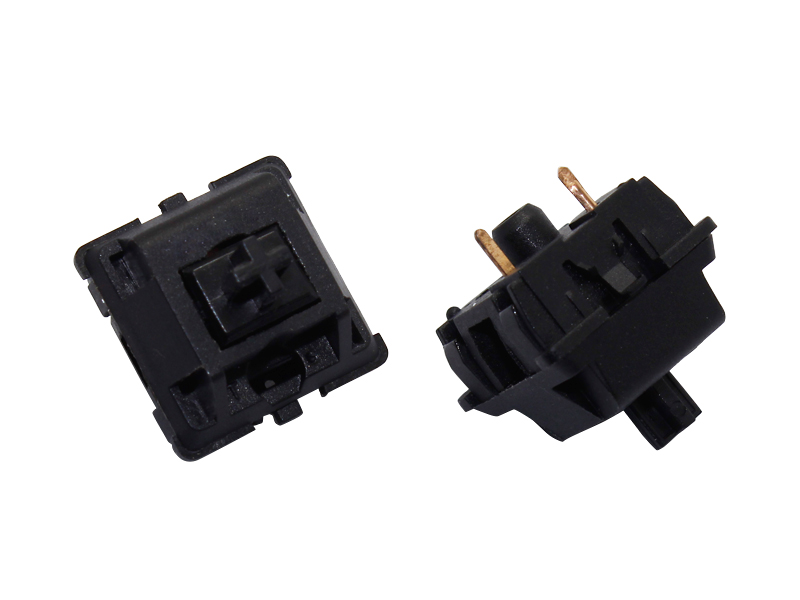

Mechanical Keyboard switches KS01 series

Material:
Cover:PA66
Actuator:POM
Contact:Au Alloy

Electrical Characteristics:
Rating:12V DC/AC Max.
Contact Resistance:200 mΩ Max
Insulation Resistance:100MΩ Min.
Contact bounce time:≤5 ms
Operating Life:20000000 cycles
Operating Force:60gf Max
End force:<110gf
Pretravel:2.0±0.6mm
Total travel:4.0mm
