M4 Hexagonal Spacer

  • Model: KLS8-0214-M4
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

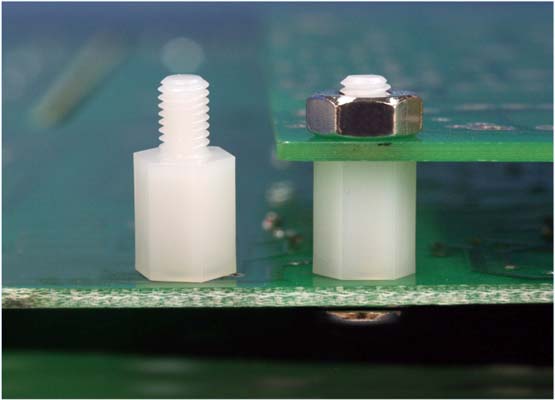

Application: the fixed PC board on the boards, free tools

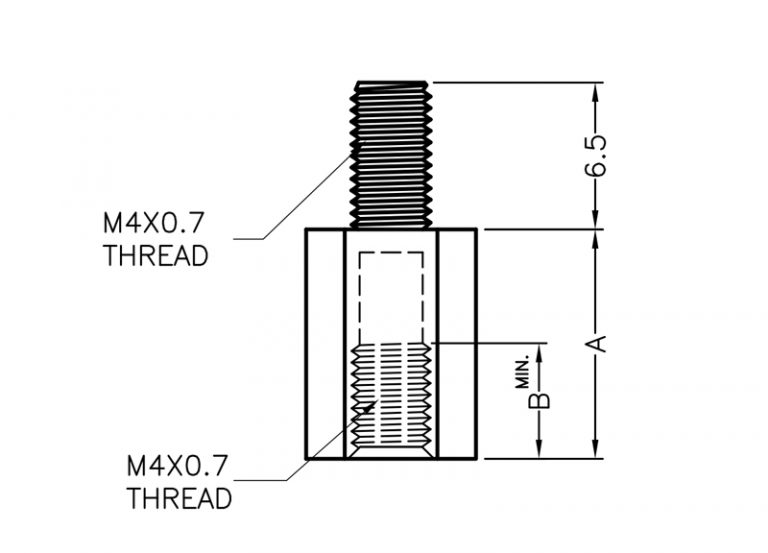

P/N A UPPER  CHASSIS  Color Packing
THERD THERD
　 mm mm mm 　 pcs
L-KLS8-0214-M4-05 5.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-06 6.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-08 8.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-09 9.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-10 10.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-11 11.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-12 12.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-13 13.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-15 15.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-18 18.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-19 19.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-20 20.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-22 22.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-25 25.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-30 30.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-35 35.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-40 40.0 M4x0.7 M4x0.7 Natural 1000
L-KLS8-0214-M4-50 50.0 M4x0.7 M4x0.7 Natural 1000
