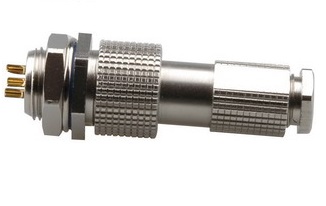

M12 Circular power connectors

  • Model: KLS15-224-M12
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

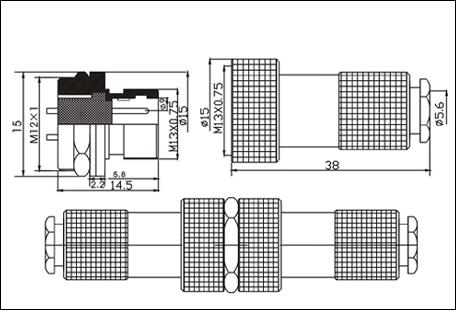

M12 Circular Connector (Water proof  Ip≥68 )
Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive.

ORDER INFORMATION:
KLS15-224-M12-2M1
                    (1) (2)(3)
(1) M12:  M12 Shell Size
(2) 2:   2 pins     (2,3,4,5,6,pins)
(3)       F1-Plug  Socket  F2-Docking Plug Pin    M1-Receptacle Pin

KLS15-224-M12 TYPE  Electrical Characteristics:

2P 3P 4P 5P 6P


Electrical Characteristics:

Contacts No.:      2P 3P 4P 5P 6P
Rated current / Voltage 5A-125V 5A-125V 5A-125V
Operation Voltage (AC.V) 200
Withstanding Voltage (AC.V) 1500
Insulation resistance (MΩ)DC500V 1500
Contact resistance (mΩ)DC1A 10
soder cup mouth diameter Ø(mm) 0.9
solder diameter Ø(mm) 1.15
TYPE TYPE Pins Ordering Water-proof

　

 Plug Socket 2 M12-2F1 IP67
3 M12-3F1 IP67
4 M12-4F1 IP67
Plug Socket 5 M12-5F1 IP67
Plug Socket 6 M12-6F1 IP67
X X X
X X X
X X X
X X X

Docking Plug Pin 2 M12-2F2 IP67
3 M12-3F2 IP67
4 M12-4F2 IP67
Docking Plug Pin 5 M12-5F2 IP67
Docking Plug Pin 6 M12-6F2 IP67
X X X
X X X
X X X
X X X

Receptacle Pin 2 M12-2M1 IP67
3 M12-3M1 IP67
4 M12-4M1 IP67
Receptacle Pin 5 M12-5M1 IP67
Receptacle Pin 6 M12-6M1 IP67
X X X
X X X
X X X
X X X
