LED Tact Switch

  • Model: KLS7-TSE3
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

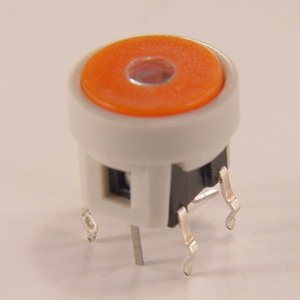

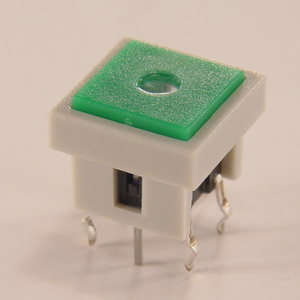

LED Tact Switch
Contact Rating:50 mA @ 12VDC
Electrical life : 1,000,000 cycles
Mechanical life :1,000,000 cycles min
Position Travel :0.25±0.1
Insulation Resistance:>100MΩ DC250V
Withstand Voltage:AC250V 1 minute
Contact Resistance:<100mΩ
Ambient Temper.:-35℃ to85℃
Operating Force: 180 ± 30g

D=Dip Type
Cap And Housing : 1=Square Cap With Housing  2=Round Cap With Housing   3=Square Cap Without Housing     4=Round Cap Without Housing
Cap Color :  =Red  G=Green  Y= Yellow      B=Black
Led Color :  =Red  G=Green  Y=Yellow    L=Blue    W=White
