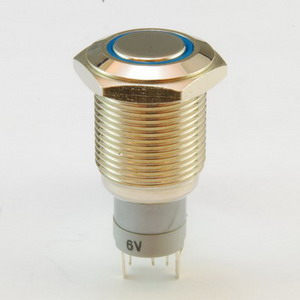

LED Push Button Switch

  • Model: KLS7-LPB-M19-01
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

LED Push Button Switch
SPECIFICATION:
Rating: 5A 250V AC

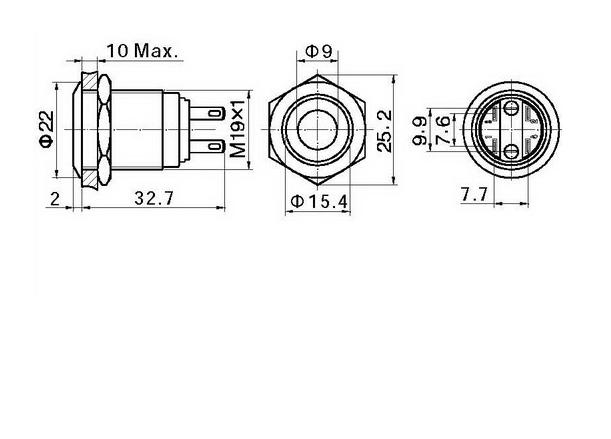

Mounting Hole: Ø19 mm
Insulation Resistance: 1,000MΩ Mim.
Contact Resistance: 50MΩ Max.
Dielectric Strength: AC 2,000V 1 Minute
Operating Temperature: -30oC ~ +85oC
Mechanical Life: 100,000 cycles
Electrical Life: 50,000 cycles

FUNCTION:
*1No 1Nc
*Non Lock Type
*LED Color : Red , Green , Yellow , Orange , Blue , White
*LED Lamp : 6V,12V,24V,110V,220V AC/DC
*Cover : Brass Or Stainless steel
Approvals : IP65
