LED Push Button Switch

  • Model: KLS7-LPB-M16-02
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

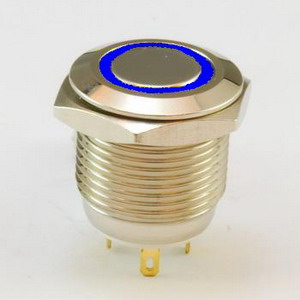

LED Push Button Switch
SPECIFICATION:
Operating Temperature: -30oC ~ +85oC
Mechanical Life: 1,000,000 cycles
Dielectric Strength: AC 2,000V 1 Minute
Operating Temperature: -30oC ~ +85oC
Mechanical Life: 1,000,000 cycles
Electrical Life: 20,000 cycles

Rating: 2A 36V DC

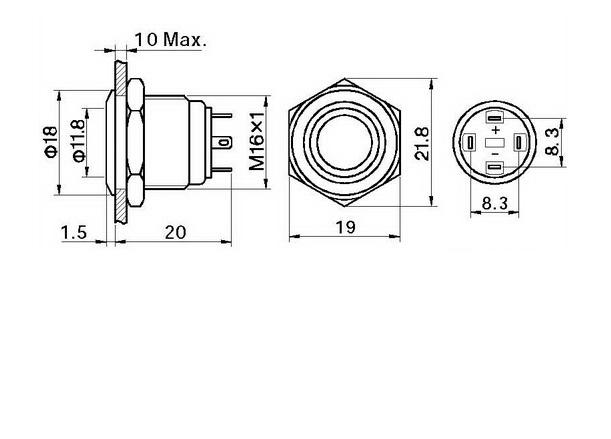

Mounting Hole: Ø16 mm

Insulation Resistance: 1,000MΩ Mim
Contact Resistance: 50MΩ Max.

Dielectric Strength: AC 2,000V 1 Minute
Operating Temperature: -30oC ~ +85oC
Mechanical Life: 1,000,000 cycles
Electrical Life: 20,000 cycles

FUNCTION:
*1No 1Nc
*Non Lock Type
*LED Color : Red,Yellow,Orange (1.7V AC/DC) / Green,Blue,White (2.8V AC/DC)
*Cover : Brass Or Stainless steel
Approvals : IP65
