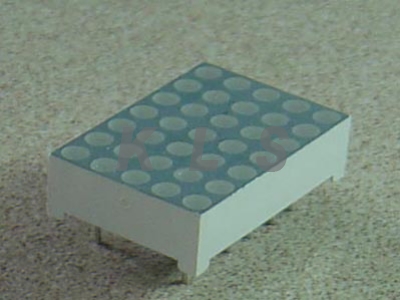

5×7 LED Dot Matrix Display
Part No.
|
Emitting color |
λP(nm)
@20mA |
VF (V)
@20mA |
IV(μcd)
@10mA |
PDF |
| Typ. |
Typ. |
Max. |
Typ. |
| KLS9-M-7571 |
GaP Green |
568 |
2.20 |
2.50 |
2500 |
page31 |
| KLS9-M-12571 |
GaAlAs/GaAs Super-Red |
660 |
1.85 |
2.20 |
6000 |
page31 |
| KLS9-M-12572 |
GaAsP/GaP Orange |
635 |
2.10 |
2.50 |
2500 |
|
| KLS9-M-20571 |
GaAlAs/GaAs Hi-Red |
660 |
1.85 |
2.20 |
3500 |
|
| KLS9-M-20571 |
GaAsP/GaP Orange+GaP Green |
635/568 |
2.10/2.20 |
2.50/2.50 |
2500/2500 |
page39 |
| KLS9-M-20571 |
Full color |
632/515/460 |
2.00/3.60/3.60 |
2.50/4.50/4.50 |
85000/150000/30000 |
|
| KLS9-M-30571 |
GaAlAs/GaAs Super-Red |
660 |
1.85 |
2.20 |
6000 |
page44 |
| KLS9-M-30571 |
GaAsP/GaP Orange+GaP Green |
635/568 |
2.10/2.20 |
2.50/2.50 |
2500/2500 |
page45 |
| KLS9-M-40571 |
GaAlAs/GaAs Super-Red |
660 |
1.85 |
2.20 |
6000 |
|
| KLS9-M-40571 |
GaAsP/GaP Orange+GaP Green |
635/568 |
2.10/2.20 |
2.50/2.50 |
2500/2500 |
page46 |
|
