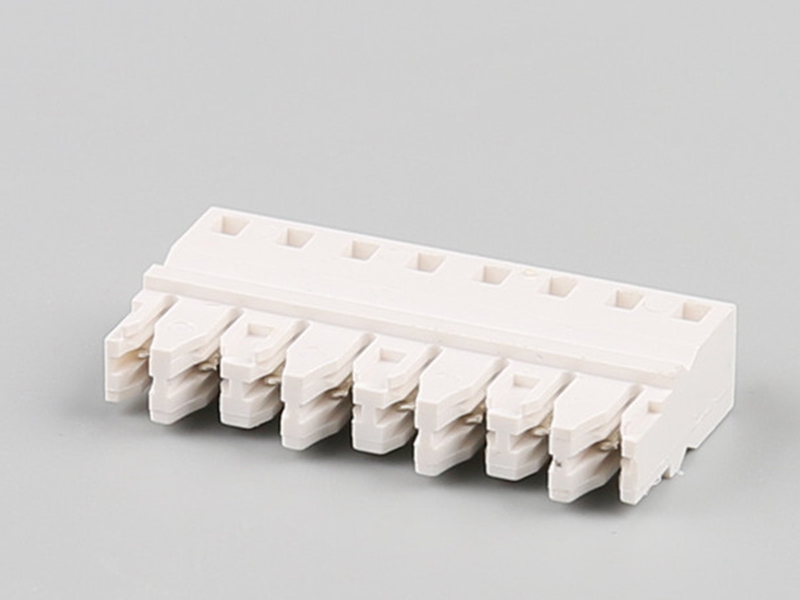

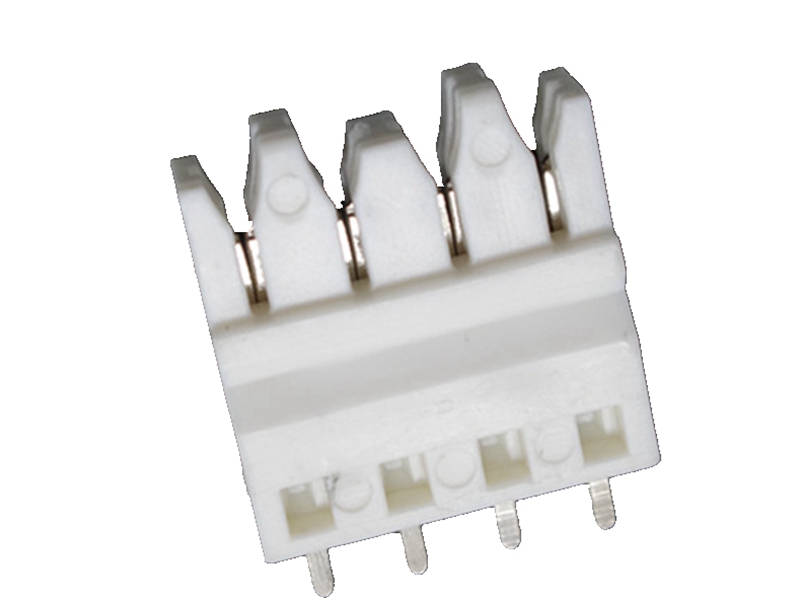

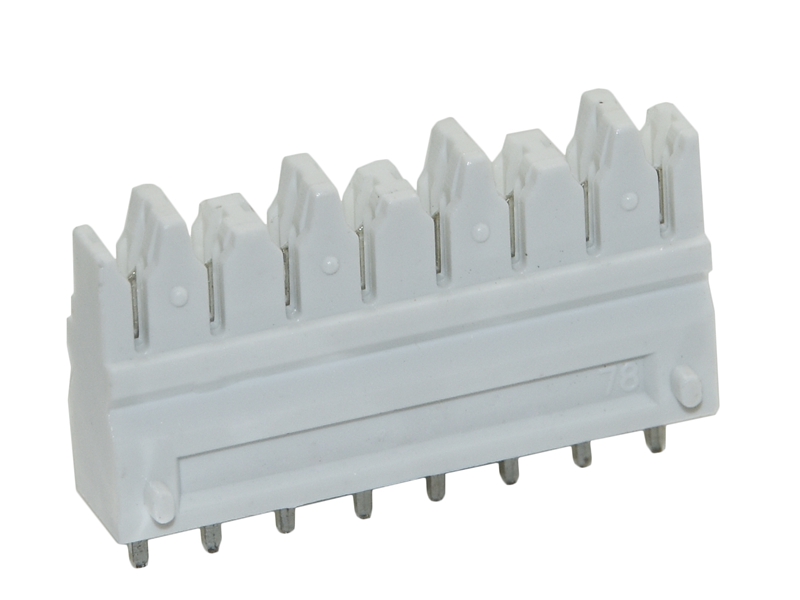

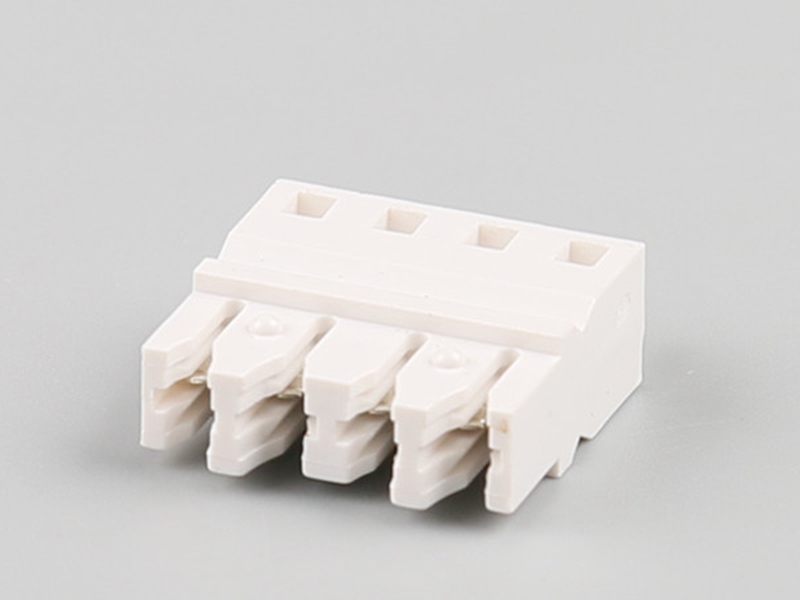

Krone 3.81mm IDC Block PCB-PLUG 2Pair&4Pair

  • Model: KLS12-CM110-02
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Housing:    PC
Flammability Rating : UL94V-0
Contacts:  Phosphor Bronze T=0.80mm
Plating:     TIN Plating

Electrical:
Voltage Rating:           125VAC
Current Rating:           1.5A
Contact Resistance:    30mΩ Max.
Insulation Resistance: 500MΩ Min. at 500V dc
Dielectric Strength:    1000VAC Rms 50Hz,1 Min.
Durability:                  750 cycles Min.
Operation Temperature:-40°C~+85°C
