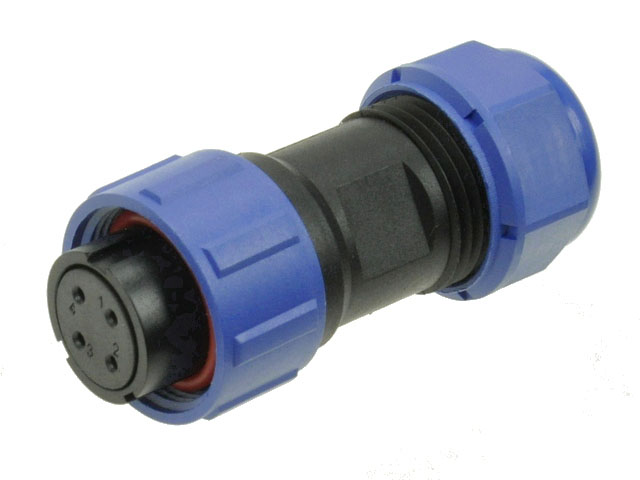

IP68 W17 CONN, Female Plug for cable, Solder
- Product Details
Material & SPEC.
1.Shell Material: PPO,PA66 UL94V-0
2.Insulation Materials: PPS, High Temperature 260°C
3.Contact: Brass,Gold-plated
4.Insulation resistance: 2000MΩ
5.Number of poles: 2~9 poles
6.Coupling: Threaded
7.Termination: Solder
8.Cable outer Diameter: 6~10mm
9.IP Rating: IP68
10.Durability: 500 mating cycles
11.Temperature Range: -25°C~+80°C
