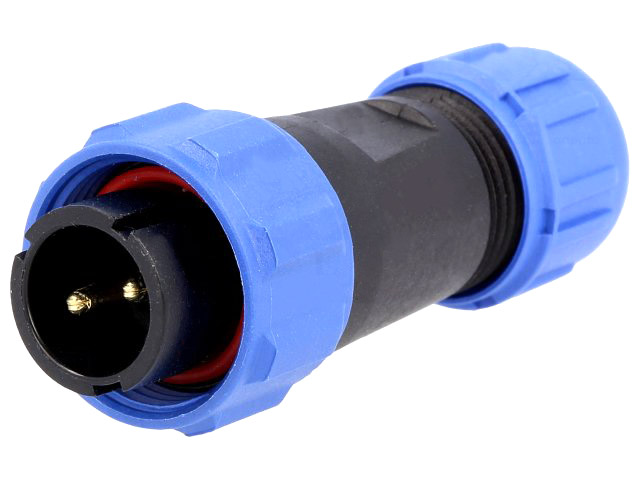

IP68 W13 CONN, Male Plug for cable, Solder

  • Model: KLS15-W13A1
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material & SPEC.

1.Shell Material:                PPO,PA66 UL94V-0
2.Insulation Materials:      PPS, High Temperature 260°C
3.Contact:                        Brass,Gold-plated
4.Insulation resistance:    2000MΩ
5.Number of   poles:         2~9  poles
6.Coupling:                       Threaded
7.Termination:                  Solder
8.Cable outer Diameter:    Not-  4~6.5mm;  G-  5~8mm
9.IP Rating:                      IP68
10.Durability:                    500 mating cycles
11.Temperature Range:      -25°C~+80°C
