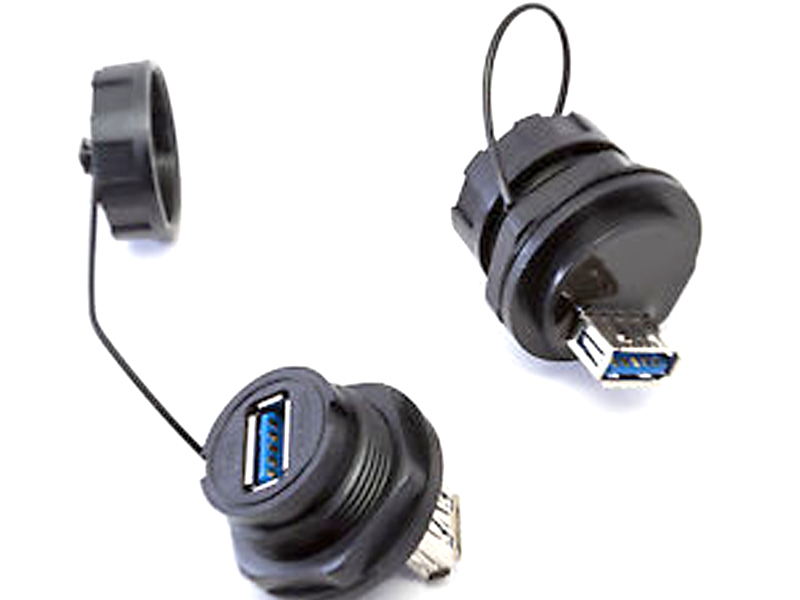

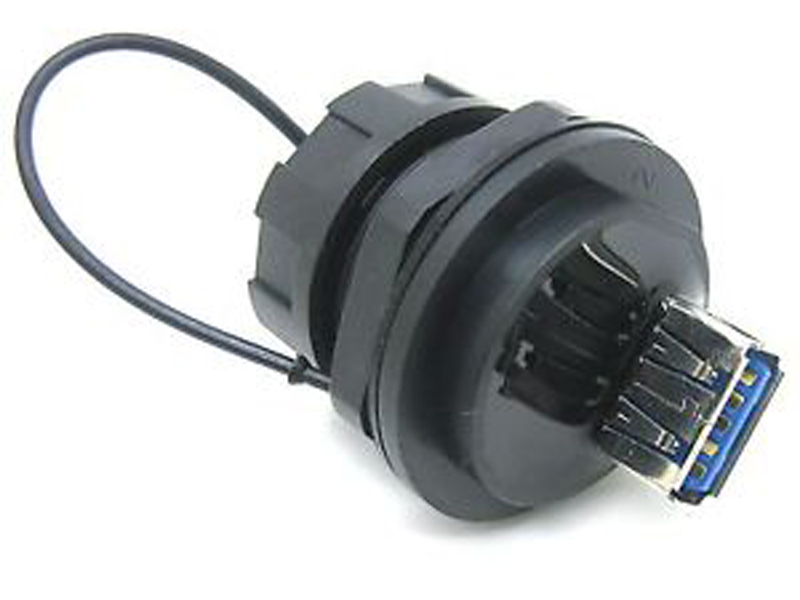

IP67 USB 3.0 AF Panel type Quick Lock

  • Model: KLS12-WUSB-03
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Material:
Body: High performance engineering plastics  UL94-V0
Contact: Phosphor bronze,gold plated
Sealing: silica gel

Electrical Characteristics:
Current Rating:          1.5 AMP
Withstand voltage:     100V
Contact Resistance: 30mΩ Max.
Insulator Resistance: 500MΩ Min.
Waterproof level:        IP67
Life:                              750 cycles Min.
Operating Temperature: -40ºC~+80ºC
