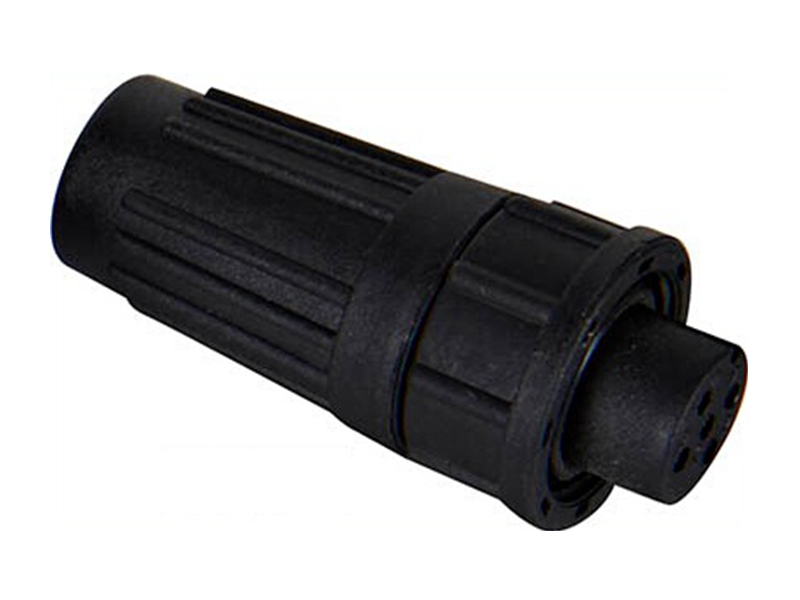

IP67 Quick lock; famale Plug; amphenol standard B series; for Cable,Solder

  • Model: KLS15-249-xxF1
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Order information
L-KLS15-249- XX   F1

XX:  Number of Contacts
F1:    Female Type,Quick Lock

Material:
Contact:        Brass,Gold Plated/Silver plated
Connector Body:  PA66+30%GF
Insert Body:      PA66+30%GF
Sealing:                   O-ring

Electrical & Mechanical data
Waterproof Rating:        IP67,Mated
Current Rating:             10A
Voltage Rating:             200V
Insulation resistance:    2000 MΩ Min.
Withstanding Voltage:   1500V AC
Cable OD:                      ∅3.5~6.5mm
Orientation:                  Straight
Mating Life:                  500 cycles Min.
Temperature Range:      -40°C ~ + 105°C
