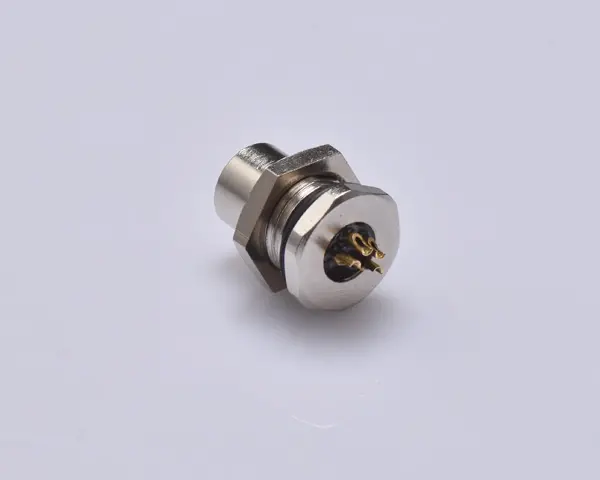

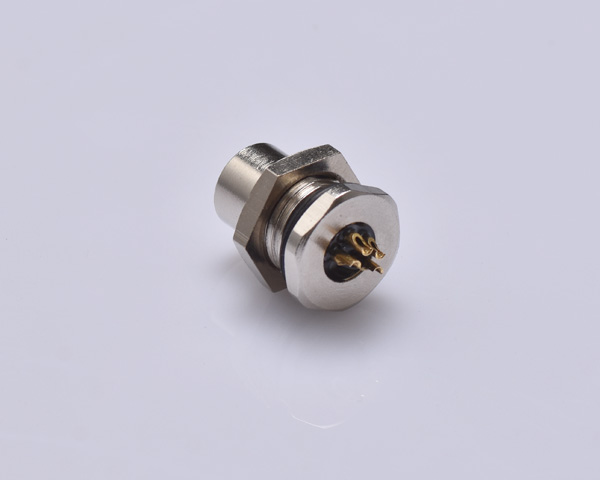

IP67 M8 A-coding Soldering Female, Panel mount, Front lock, Automation technology

  • Model: KLS15-M8A-L1
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Order information
L-KLS15-M8 A-L1   XX

M8: Screw type
A:    A-Coding
L1:   Soldering ,Panel mount, Front lock,Female
XX:  Number of Contacts(3P,4P,6P,8P)

Electrical & Mechanical data
IP rating:IP67
Contacts resistance:≤ 5 mΩ
Insulation resistance:≥100 MΩ
Orientation: PCB 180° Front Lock
Over mold/ Shell:Metal shell
Connector contacts:Brass with gold plated
Coupling nut/screw:Brass with nickel plated screw
Insert/ Housing: PA66 + GF
Sealing:O-ring
Temperature Range:-25°C ~ + 80°C
