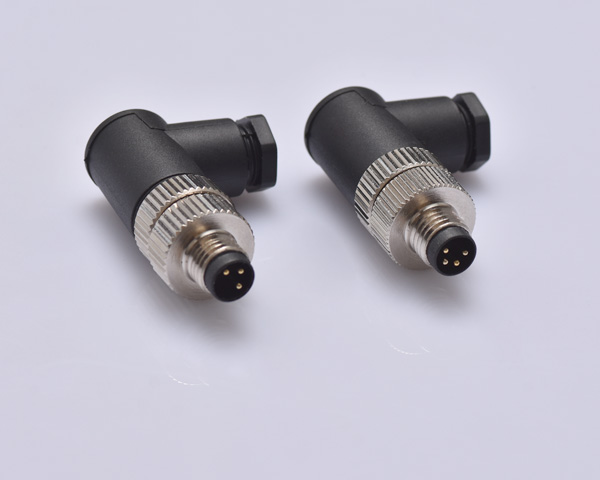

IP67 M8 A-coding R/A Plug Male Connector Automation technology

  • Model: KLS15-M8A-TR1
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Order information
L-KLS15-M8 A-TR1   XX

L:     RoHS
M8: Screw type
A:    A-Coding
TR1:   R/A Plug Code (Male Pin)
XX:  Number of Contacts  (3P 4P 6P 8P)

Electrical & Mechanical data
IP rating:IP67
Wire gauge:24AWG/0.25mm²
Connector contacts:Brass with gold plated
Contacts resistance:≤ 5 mΩ
Insulation resistance:≥100 MΩ
Orientation:Right angle
Coupling nut/screw:Brass with nickel plated screw
Cable jacket material:PUR
Insert/ Housing:TPU
Overmold/ Shell:TPU
Temperature Range:-25°C ~ + 80°C
