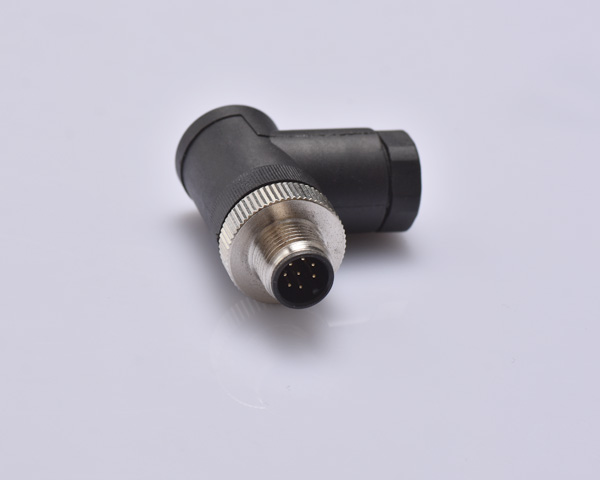

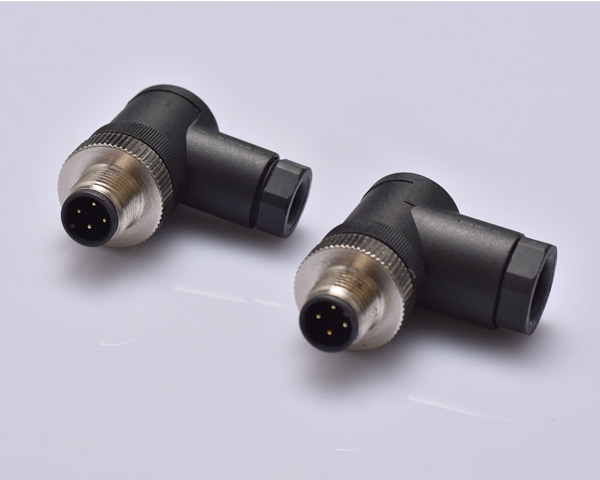

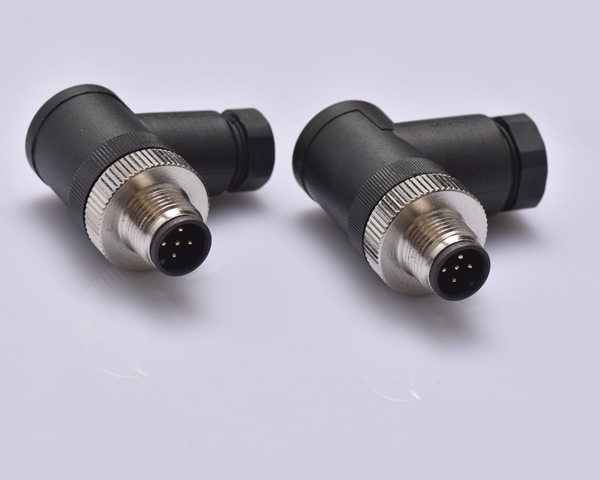

Order information
L-KLS15-M12 A-TR1   XX   PG X

L:     RoHS
M12: Screw type
A:    A-Coding
TR1:   R/A Plug Code (Male Pin)
XX:  Number of Contacts
X:    Cable outlet  PG7 or PG9

Electrical & Mechanical data
IP rating:IP67
Wire gauge:24AWG/0.25mm²
Connector contacts:Brass with gold plated
Contacts resistance:≤ 5 mΩ
Insulation resistance:≥100 MΩ
Orientation:Right angle
Coupling nut/screw:Brass with nickel plated screw
Cable jacket material:PUR
Insert/ Housing:TPU
Overmold/ Shell:TPU
Sealing:O-ring
Temperature Range:-25°C ~ + 80°C
