Welcome to KLS

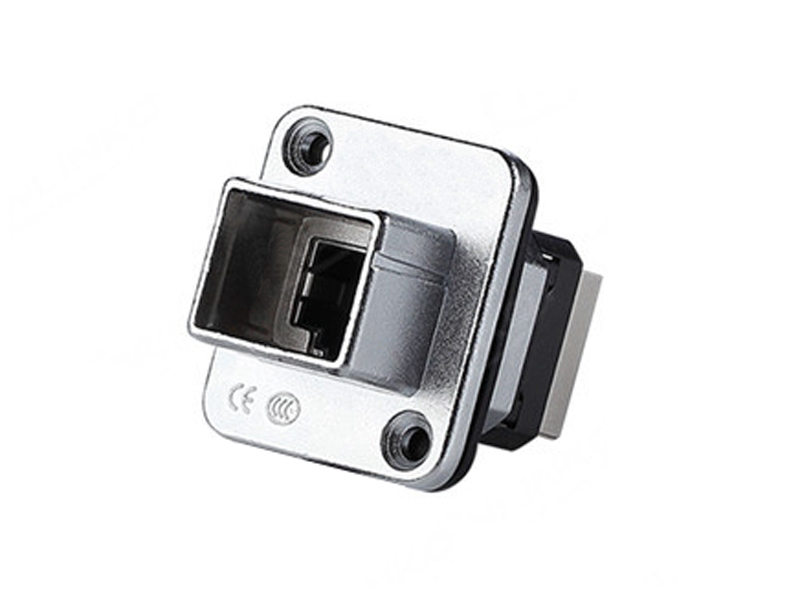

IP65 RJ45 Jack with Metal shell

  • Model: KLS12-WRJ45-16
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Material:
Body: High performance engineering plastics  UL94-V0
Sealing: silica gel

Electrical Characteristics:
Current Rating:          5 AMP
Withstand voltage:    1000V
Contact Resistance:   30mΩ Max.
Insulator Resistance: 500MΩ Min.
Waterproof level:        IP65
Life:                             750 cycles Min.
Operating Temperature: -40ºC~+80ºC
