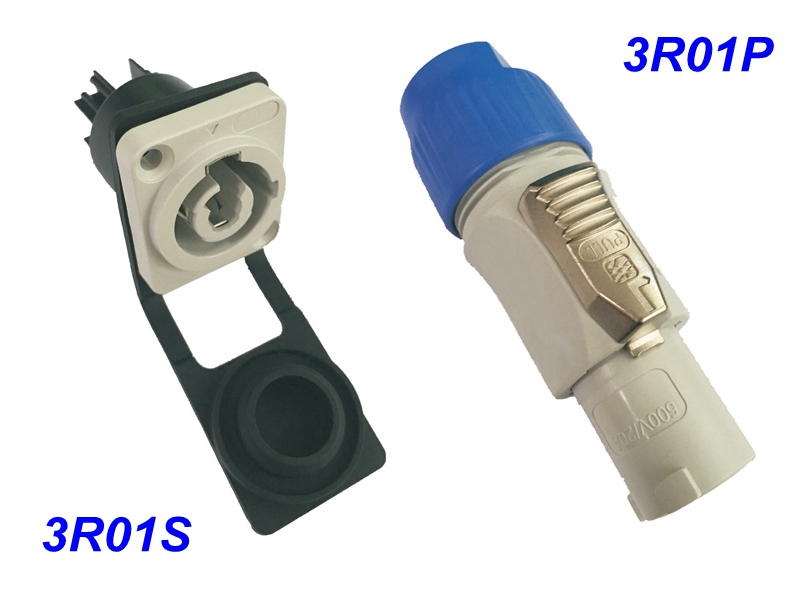

IP65 PowerCon Right type 3Pin

  • Model: KLS15-3R01
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Electrical
Contact Resistance:      3 mΩ Max.
Withstand voltage:     2500V
Insulation Resistance:   500MΩ Min.
Number of electronical contacts:   2 + PE
Rated current:            20A
Rated voltage:            250V

Mechanical

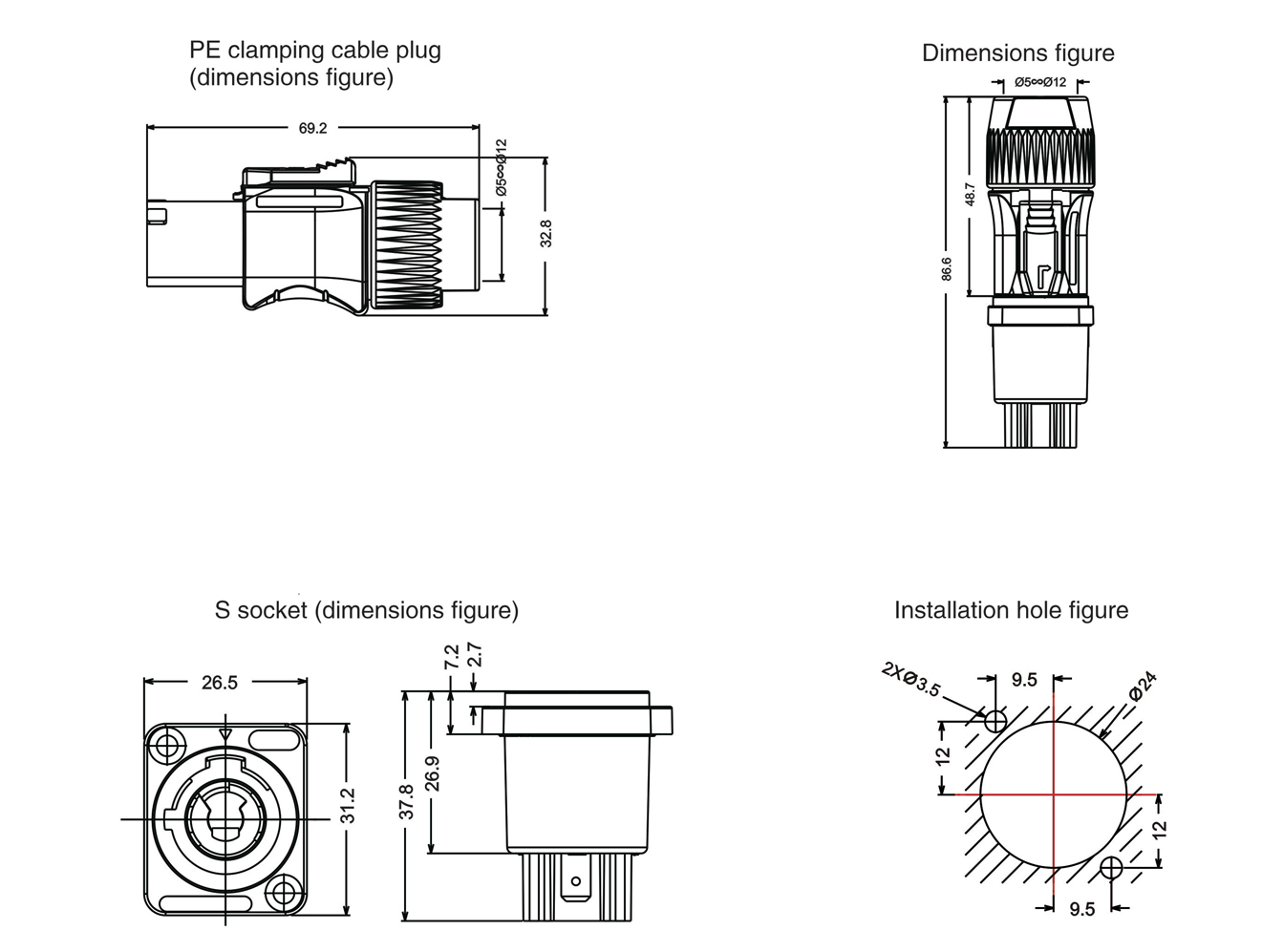

Cable O.D:   8~12mm
Lifetime:    500 cycles Min.
Wire size:   2.5~4.0 mm2/14~12AWG
Locking device:   Quick Lock

Material
Contacts:   Bronze ,Ag plated
Insert:   Polyamide
Locking element:   Zinc diecast
Shell:    Polyamide
Waterproof circle:   Silicone

Environmental
Temperature range:   -40 °C to +80 °C
